SKU: 6190-FS3030

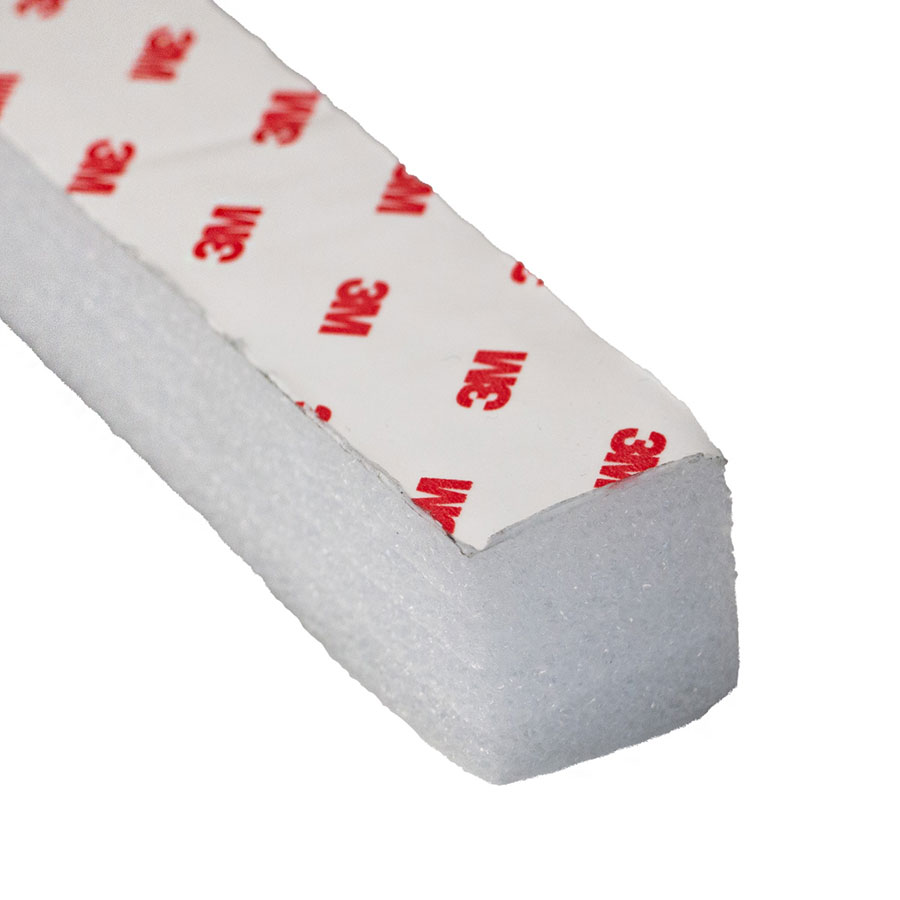

Foam Square Profile is a 30mm x 30mm closed-cell foam backer rod for precast panel and formwork joints, supplied in 2.4m lengths with a self-adhesive strip along one edge. A joint sealed without a backer rod uses more sealant than it needs to and gives the bead nothing to key against, which shortens the life of the seal. This backer rod debonds the base of the joint so the sealant only bonds to the two side faces, which is what lets the bead flex properly as the joint moves instead of tearing at the base. The adhesive strip holds the foam in place in the joint before the panel goes up, and the foam compresses to conform to the joint shape once it's fitted. It's supplied 25 lengths to the bundle, and precast and formwork crews use it ahead of sealant application on panel joints in residential and commercial builds.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
Foam Square Profile is a 30mm x 30mm closed-cell foam backer rod for precast panel and formwork joints, supplied in 2.4m lengths with a self-adhesive strip along one edge. A joint sealed without a backer rod uses more sealant than it needs to and gives the bead nothing to key against, which shortens the life of the seal. This backer rod debonds the base of the joint so the sealant only bonds to the two side faces, which is what lets the bead flex properly as the joint moves instead of tearing at the base. The adhesive strip holds the foam in place in the joint before the panel goes up, and the foam compresses to conform to the joint shape once it’s fitted. It’s supplied 25 lengths to the bundle, and precast and formwork crews use it ahead of sealant application on panel joints in residential and commercial builds.
| Specification | Details |
|---|---|
| Profile | 30x30 mm |
| Length | 2.4 m |
| Pack Quantity | 25 |
| Material | Closed-cell foam |
| Backing | Self-adhesive |
Download your Foam Square Profile - Adhesive Backing resources:
Foam Square Profile - Adhesive Backing does not have any Safety Data Sheets. Request here
About Foam Square Profile - Adhesive Backing
A foam backer rod like Foam Square Profile fits into the base of a joint before sealant is applied. It debonds the joint base so the sealant only bonds to the two side faces, letting the bead flex properly as the joint moves.
Foam Square Profile is a 30mm x 30mm square section, supplied in 2.4m lengths, 25 lengths per bundle.
No. It has a self-adhesive strip along one edge that holds it in place in the joint before the panel goes up.
A backer rod fills the base of the joint so less sealant is needed to finish it, and it stops the sealant bonding to the joint base, which lets the bead flex with the joint instead of tearing.
Foam Square Profile is a closed-cell foam that compresses and conforms to the joint shape once fitted.
