SmartBlock - Concrete Block 180 x 60 x 60 - Step Mould 1800mm x 600mm x 600mm

SKU: 6197-180.60.60-S

$3,300.00 + GST

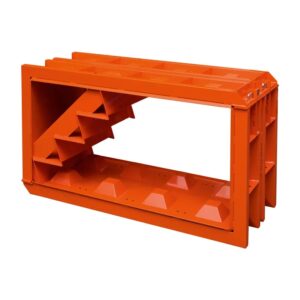

SmartBlock Step Mould 1800 casts a staircase profile directly into a longer concrete block, rather than building steps separately once the wall or retaining structure is in. Forming steps with conventional formwork means extra setup and extra pours, and retrofitting steps onto an existing block structure is slower again. This steel mould uses a staircase model divider insert to cast a stepped profile into a 1800mm x 600mm x 600mm block in one pour, with a concave base that keys into the block below it. Built from steel with a chamfered edge for a tidy finish, each mould weighs 235kg and casts a 0.55m³ block. Sites and concrete yards use the longer length to cover more of a stepped run in fewer blocks.

Read more

Key Specs

  • Length: 1800mm
  • Width: 600mm
  • Height: 600mm
  • Weight: 235kg
See All Specifications
Low Stock

Need a quote? Simply add to cart and you have the option to request a quote before checkout

Categories:

What is SmartBlock - Concrete Block 180 x 60 x 60 - Step Mould?

SmartBlock Step Mould 1800 casts a staircase profile directly into a longer concrete block, rather than building steps separately once the wall or retaining structure is in. Forming steps with conventional formwork means extra setup and extra pours, and retrofitting steps onto an existing block structure is slower again. This steel mould uses a staircase model divider insert to cast a stepped profile into a 1800mm x 600mm x 600mm block in one pour, with a concave base that keys into the block below it. Built from steel with a chamfered edge for a tidy finish, each mould weighs 235kg and casts a 0.55m³ block. Sites and concrete yards use the longer length to cover more of a stepped run in fewer blocks.

Benefits

  • Casts a staircase profile directly into the block in one pour
  • Longer 1800mm length covers more of a stepped run per block
  • Concave base keys into the block below for a secure stack
  • Chamfered edges for a tidy finished block
  • Steel construction holds up to repeated on-site or yard use
  • Casts a 0.55m³ block from a single mould

Main Applications

  • Integrated steps as part of a longer retaining wall structure
  • Converting waste concrete into a reusable stepped product
  • Concrete yard block production
  • Landscaping and site access steps
  • Sites wanting to avoid disposal costs on leftover concrete

Technical Specifications

Specification Details
Length 1800 mm
Width 600 mm
Height 600 mm
Weight 235 kg
Volume 0.55 m³
Material Steel, chamfered edges
Face Profile Staircase divider, Concave Base
