SmartBlock – Concrete Block Mould 180 x 60 x 60

$3,300.00 excl GST

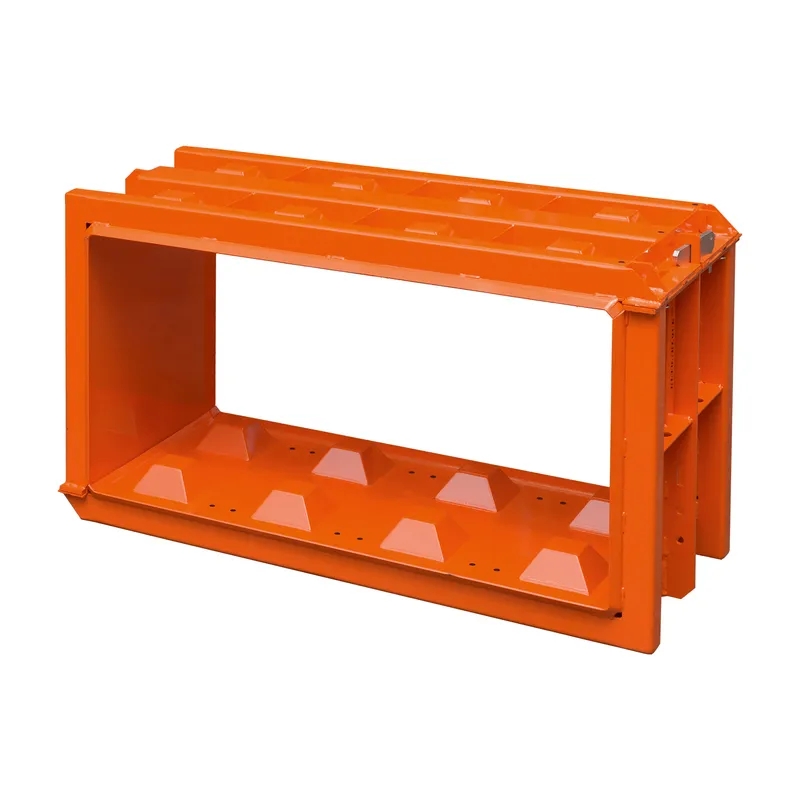

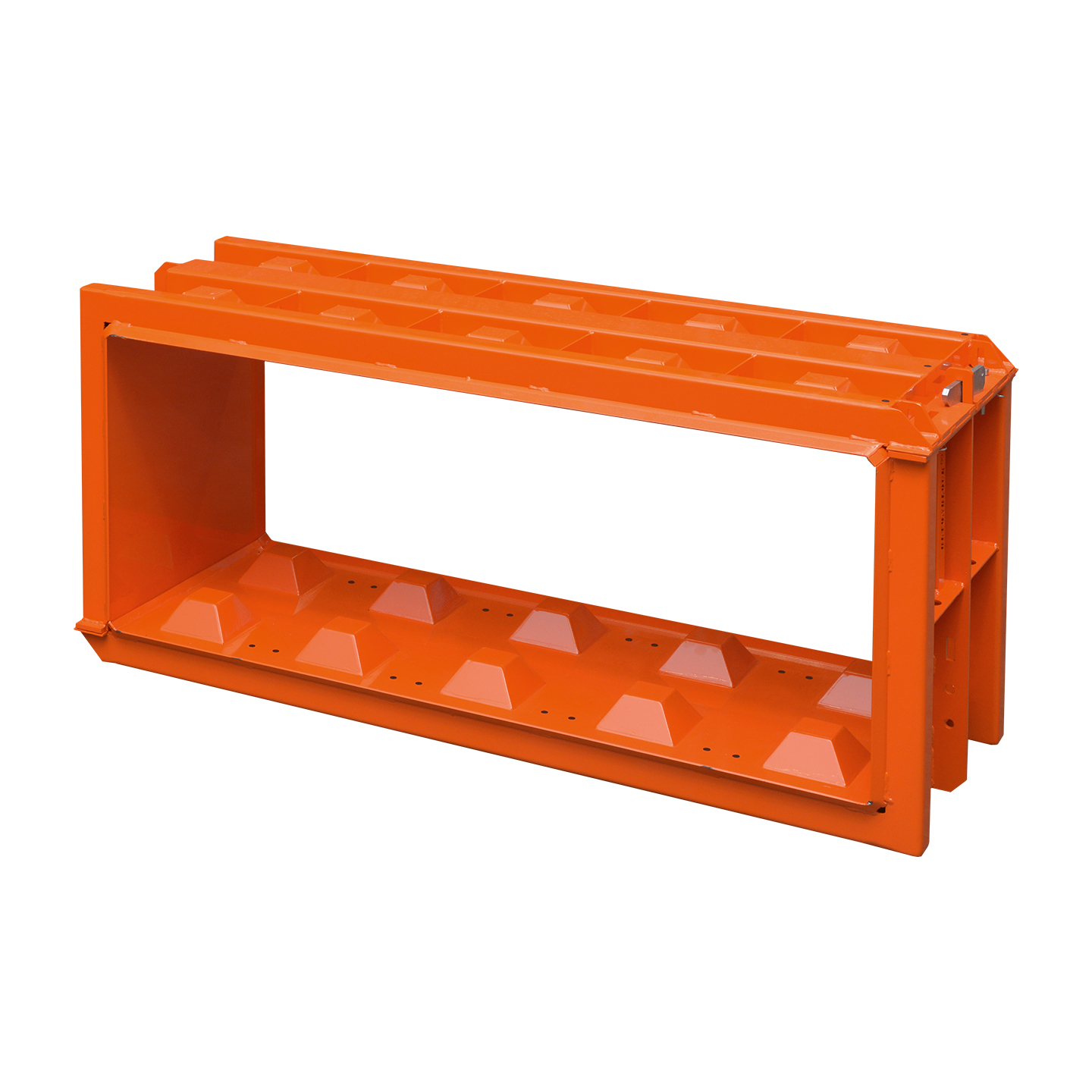

Smart Block is a versatile steel concrete block formwork system that simplifies on-site deployment. Features an interlocking design for various applications, and includes customizable options for safe and efficient production and handling of finished blocks.

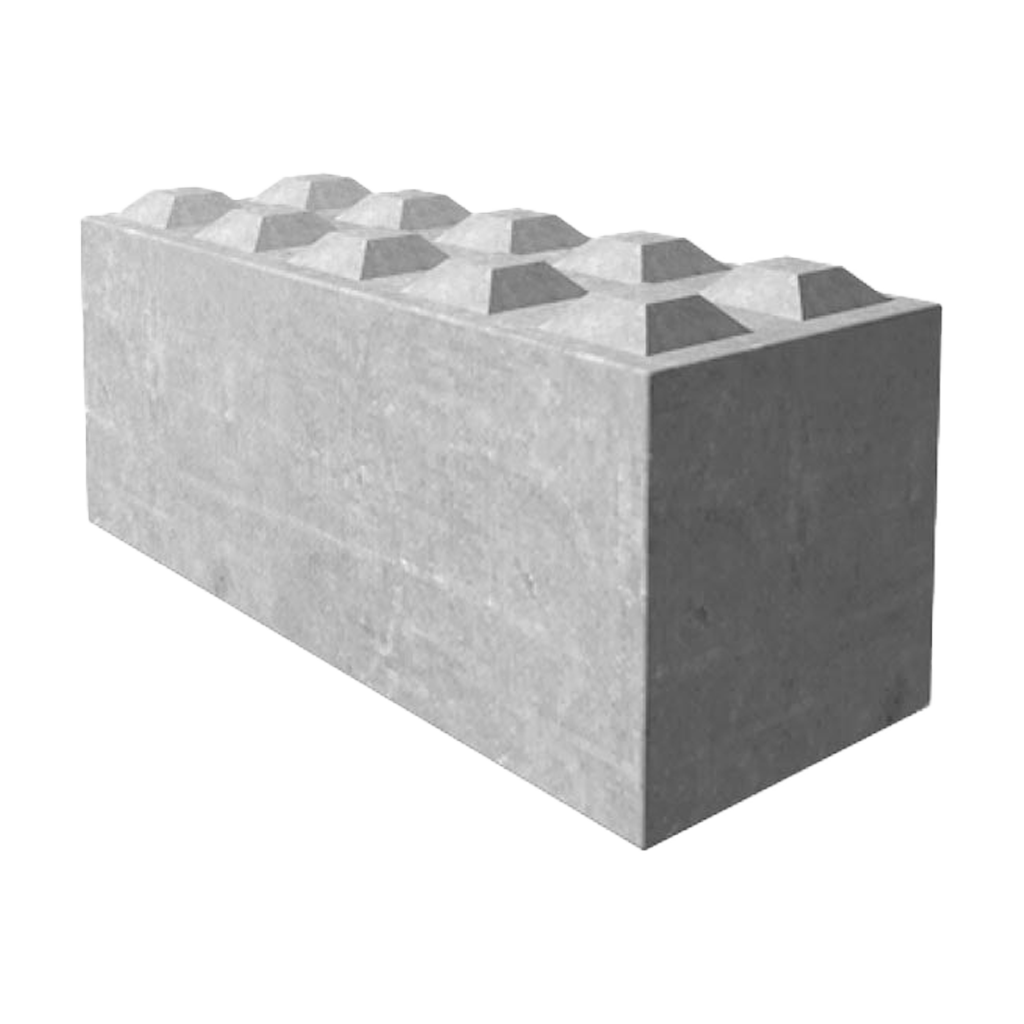

Block Dimensions: 1800mm L x 600mm W x 600mm H
Volume: .43 m3
Weight: 210kg
Steel thickness: 4mm
Chamfer: 17mm across all edges

Downloads

SKU 6197-180.60.60 Category Concrete Block Moulds

Description

Smart Block is a Steel Concrete Block Formwork system that can be deployed onsite or at a concrete yard to contain waste concrete & convert to a reusable product.

Due to the design of the interlocking system, there is multiple uses for these block forms to suit many applications.

You can place blocks at 90deg to form a corner, or even stagger these at form a sloped wall profile for retaining structures.

We offer a divider plate insert which enables you to convert a 1.2m x .6m x .6m block form to create a .6m x .6m x .6m block form.

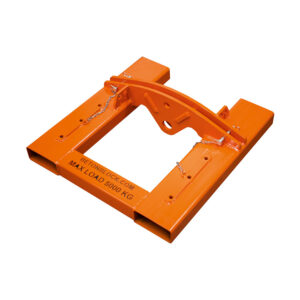

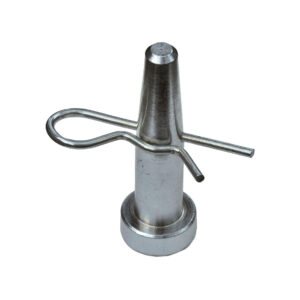

There is a Swiftlift insert penetration in the form or we offer a magnet mount swiftlift & recess former system to make it easy & safe for creating & Handling the finished product.

There is a 17mm chamfer on both edges to give you a tidy finish across all edges.
