SKU: 6193-SF90225

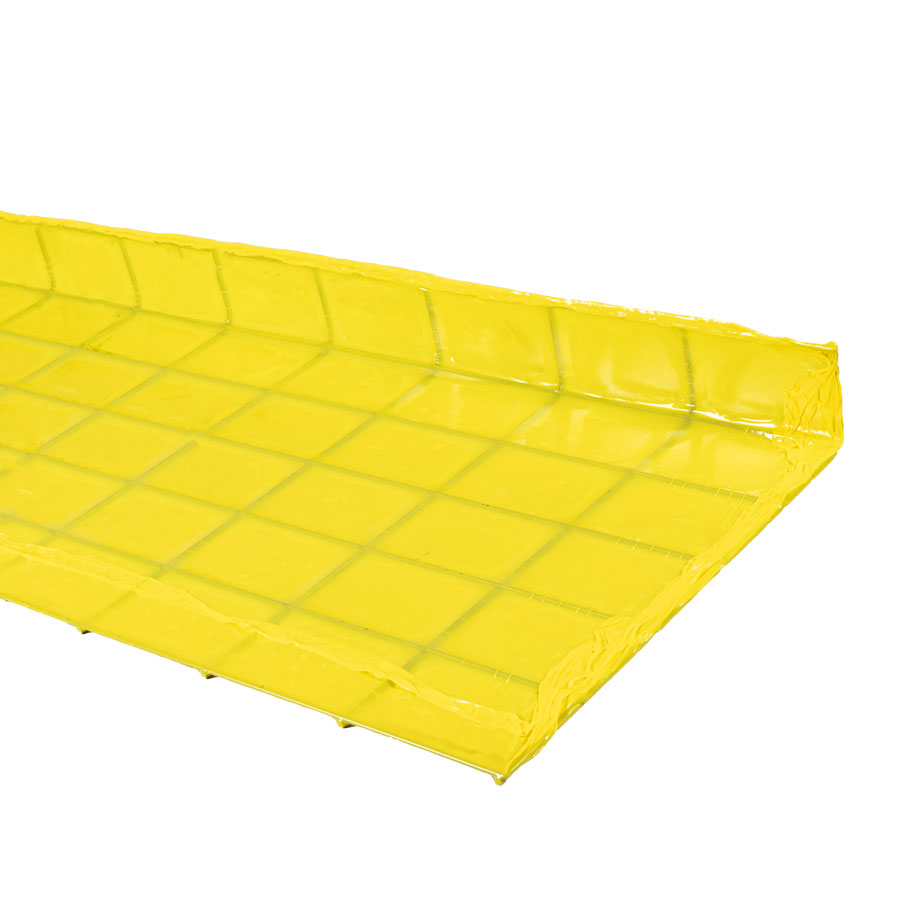

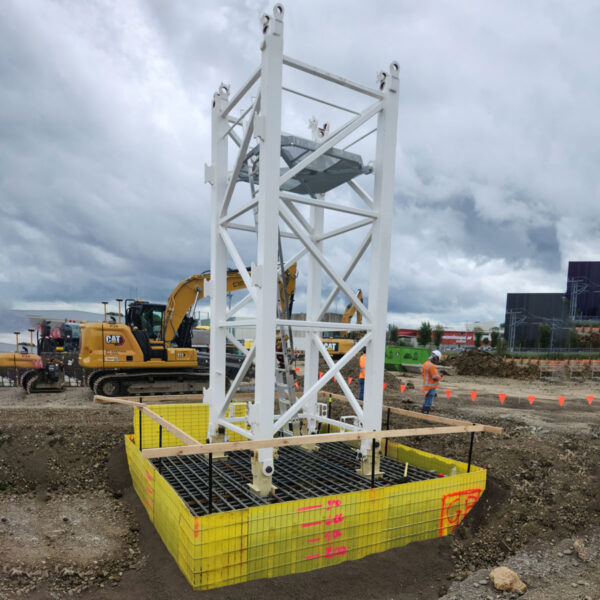

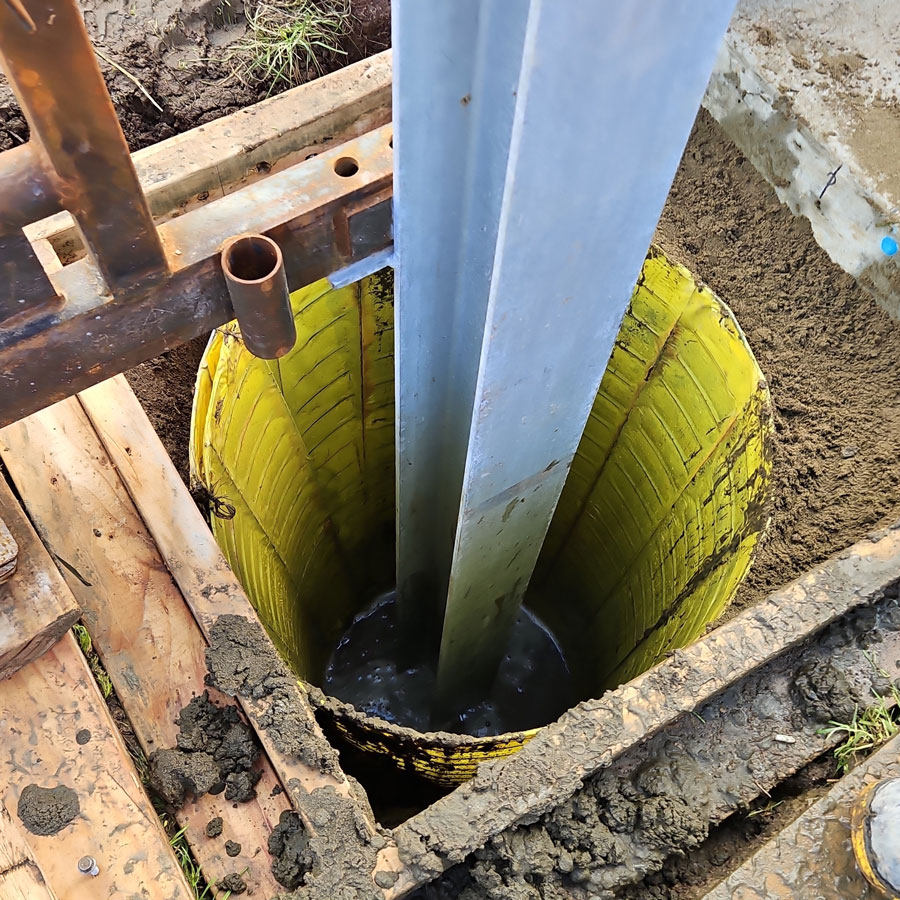

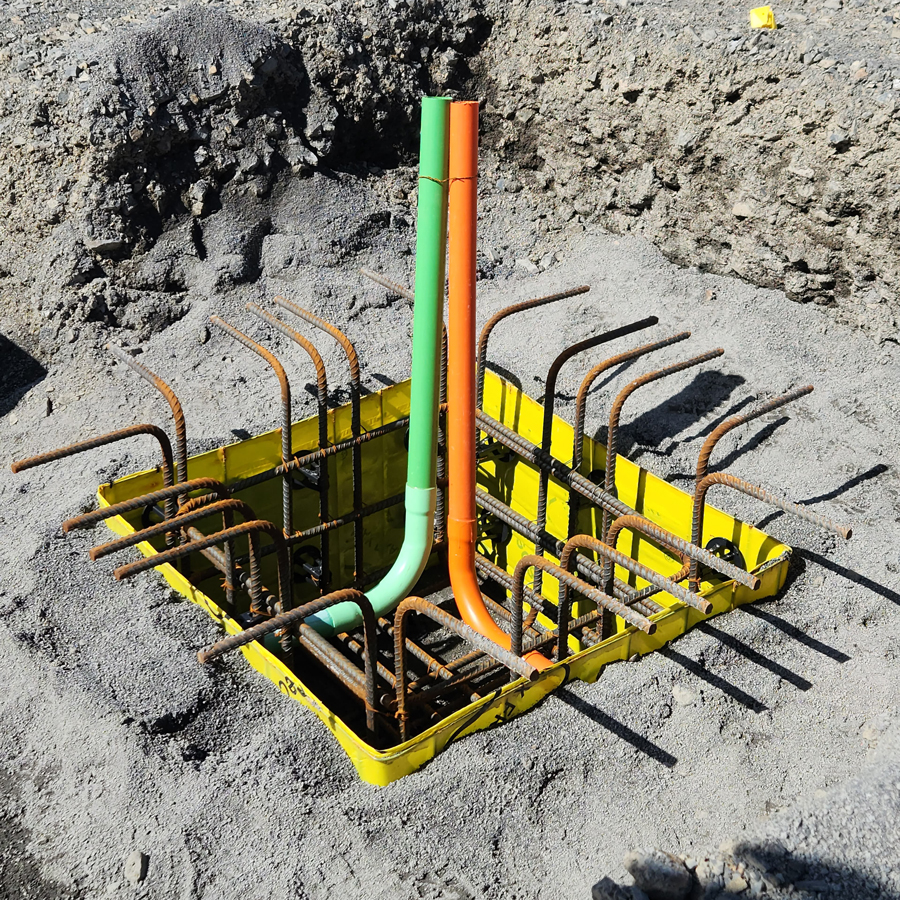

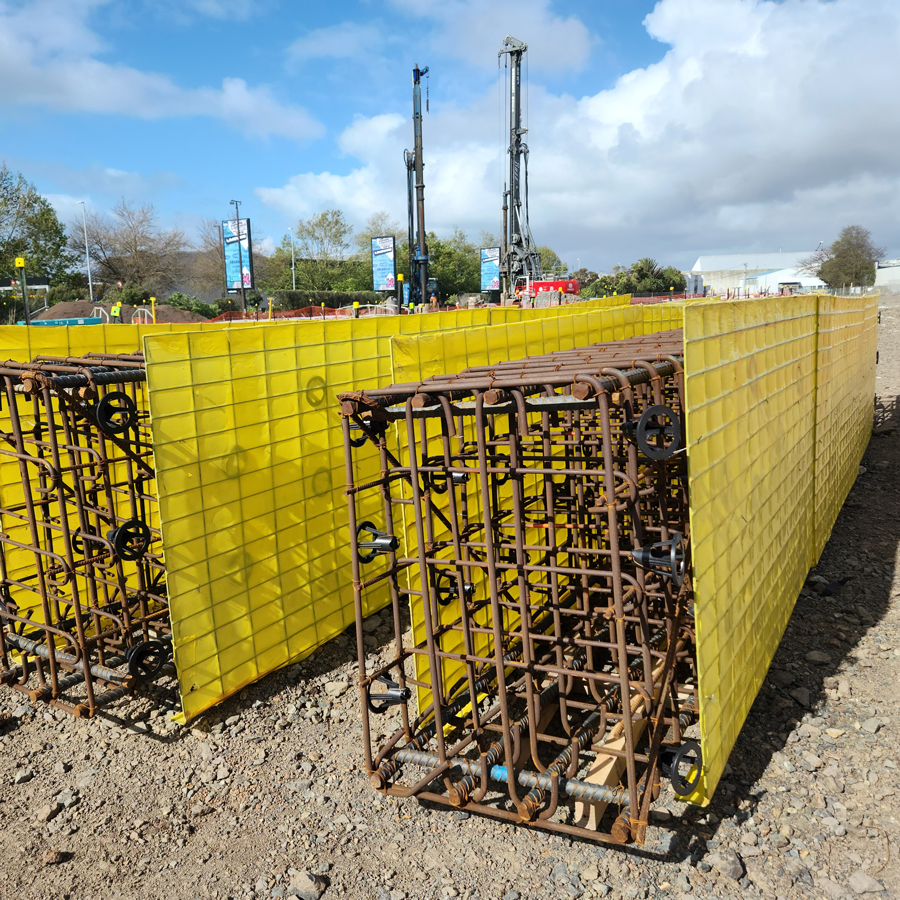

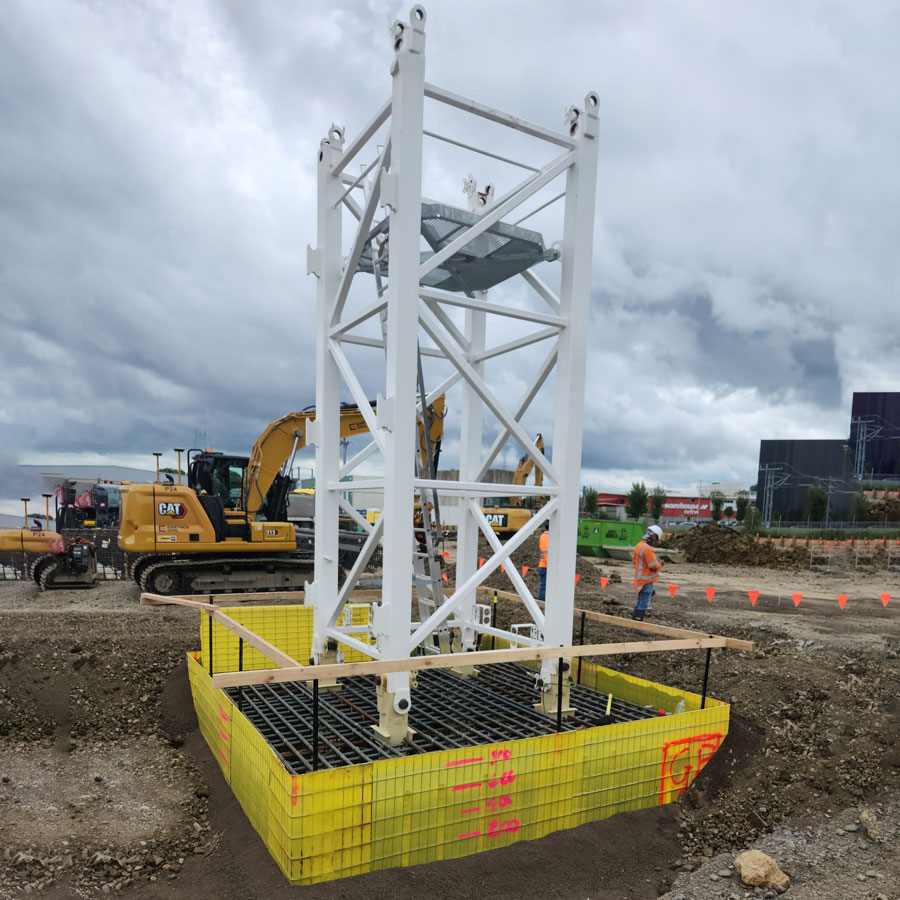

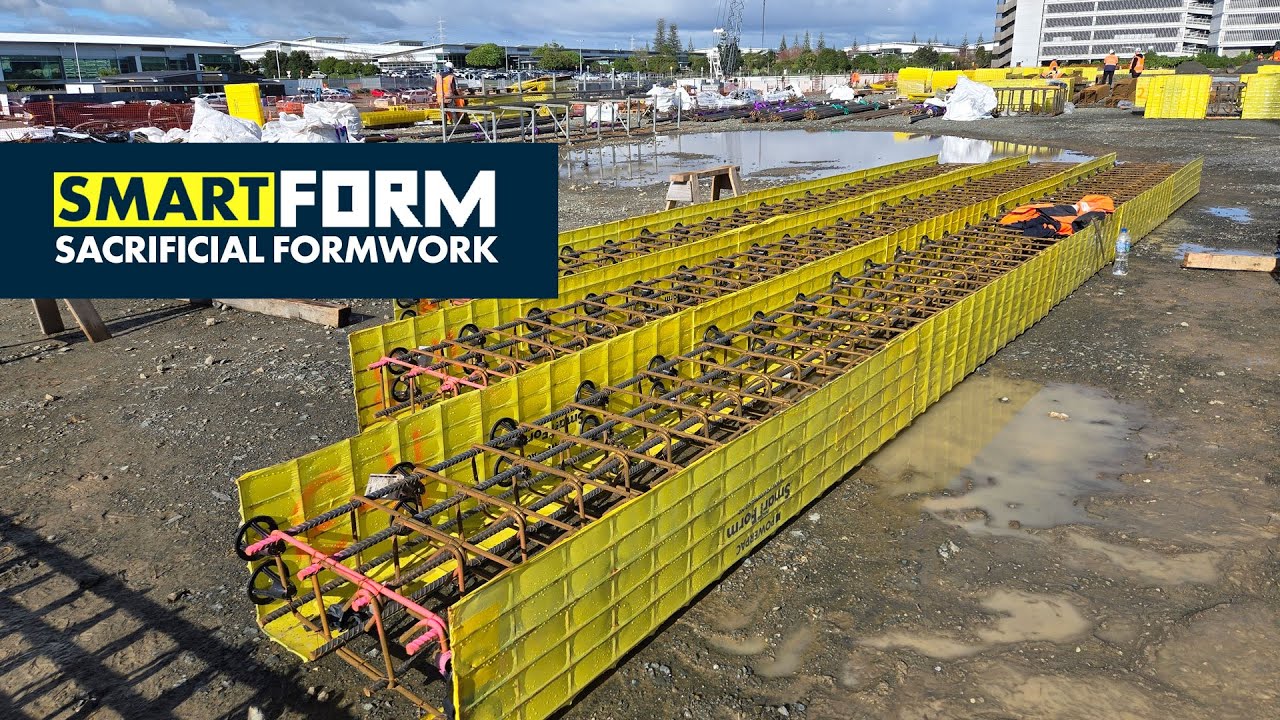

SmartForm 900mm eliminates the need to strip formwork or backfill an oversized excavation once a pour has cured. Conventional formwork means digging extra working space to fit rigid panels, stripping them after the concrete sets, and cleaning or disposing of them, all adding labour and site risk. This sheet combines a welded high-tensile steel mesh with a UV-resistant polyethylene facing, fixed in place with tie wire alone, no hammer, nails or saws needed. It's light enough to handle without lifting equipment, so backfill can go in before the concrete is even poured, and once the pour cures the formwork simply stays in the ground as lost formwork. Supplied pre-formed to size or as a flat sheet to cut and shape on site, it handles curves and special profiles that rigid formwork can't. This sheet measures 900mm wide by 2.25m long, in yellow. Concrete crews use this width for footings, pile caps and general ground beam work.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
SmartForm 900mm eliminates the need to strip formwork or backfill an oversized excavation once a pour has cured. Conventional formwork means digging extra working space to fit rigid panels, stripping them after the concrete sets, and cleaning or disposing of them, all adding labour and site risk. This sheet combines a welded high-tensile steel mesh with a UV-resistant polyethylene facing, fixed in place with tie wire alone, no hammer, nails or saws needed. It’s light enough to handle without lifting equipment, so backfill can go in before the concrete is even poured, and once the pour cures the formwork simply stays in the ground as lost formwork. Supplied pre-formed to size or as a flat sheet to cut and shape on site, it handles curves and special profiles that rigid formwork can’t. This sheet measures 900mm wide by 2.25m long, in yellow. Concrete crews use this width for footings, pile caps and general ground beam work.
| Specification | Details |
|---|---|
| Width | 900 mm |
| Length | 2250 mm |
| Wire Diameter | 5.5/4 mm |
| Mesh Size | 150mm x 75mm |
| Plastic Sheet | Polyethylene, UV Resistant |
| Plastic Sheet Thickness | 200 Micron |
| Colour | Yellow |
Download your SmartForm Sacrificial Formwork resources:
SmartForm Sacrificial Formwork does not have any Safety Data Sheets. Request here
About SmartForm Sacrificial Formwork
900mm wide by 2.25m long.
High tensile steel wire, 150mm x 75mm mesh, 5.5mm/4mm wire diameter.
UV-resistant polyethylene, 200 micron thick (300 micron also available).
No, it stays in the ground as lost formwork once the concrete has cured.

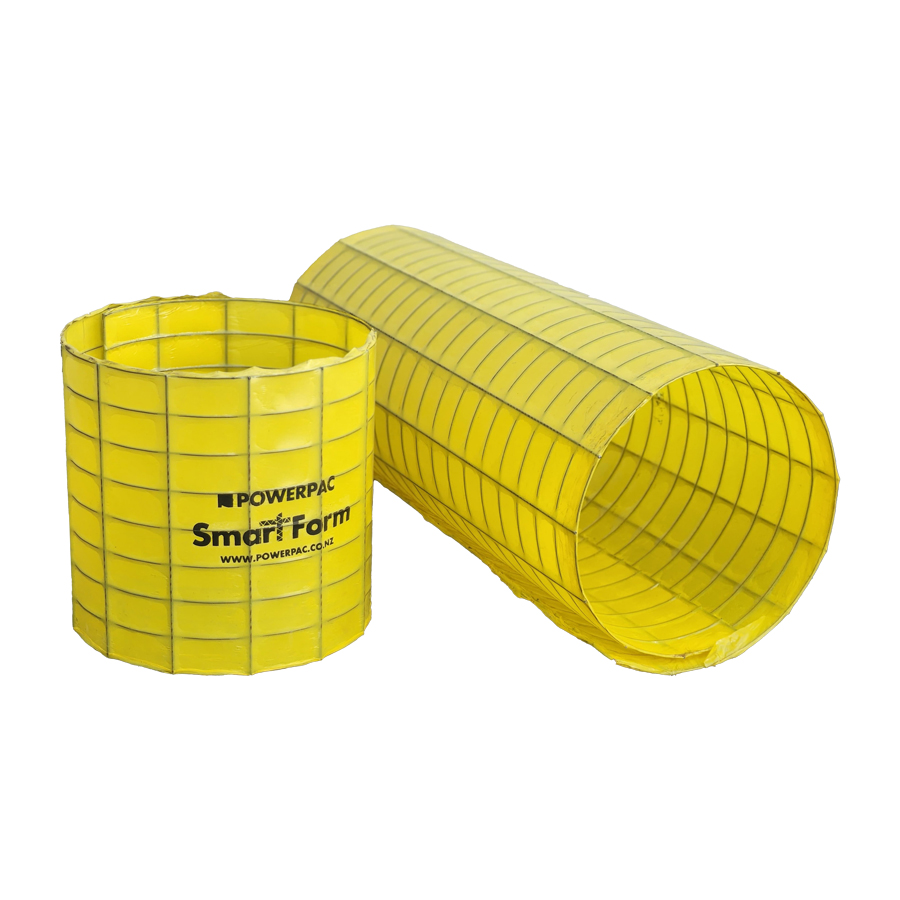

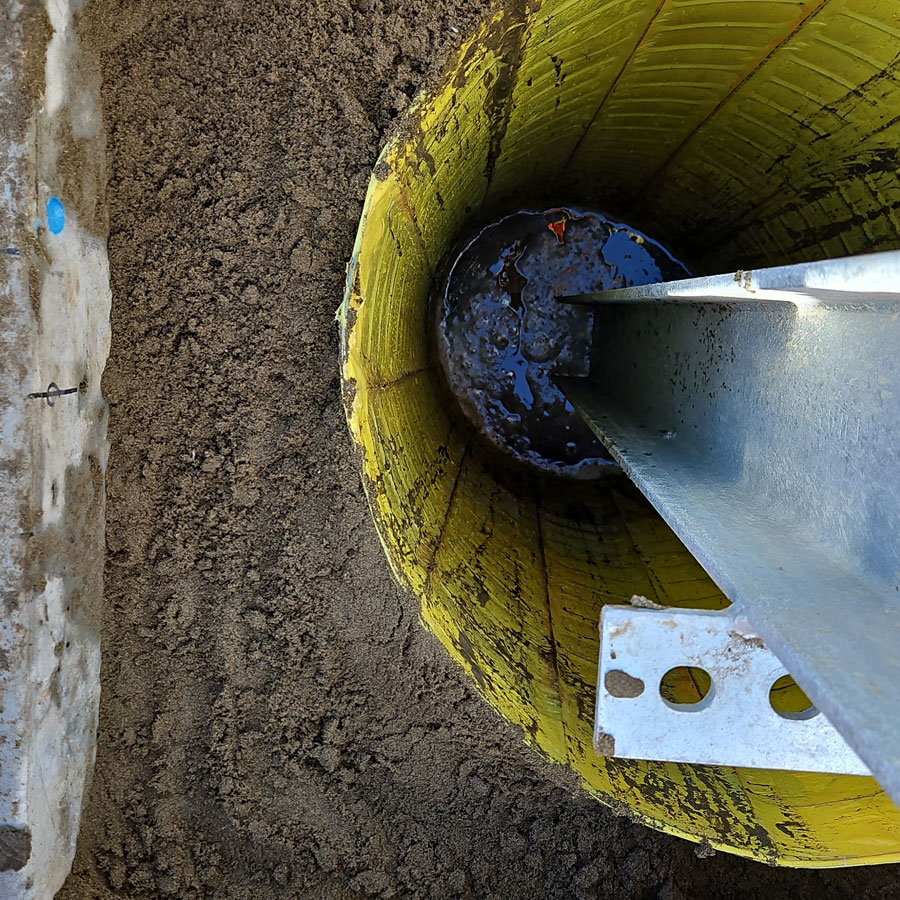

Yes, it's supplied as a flat sheet that can be cut and fabricated on site, or pre-formed to size at the factory.
With tie wire alone, no hammer, nails or saws needed.
Yes, Powerpac offers a free pricing and scheduling service. Submit your plans to [email protected].
