SKU: 6190-LS6

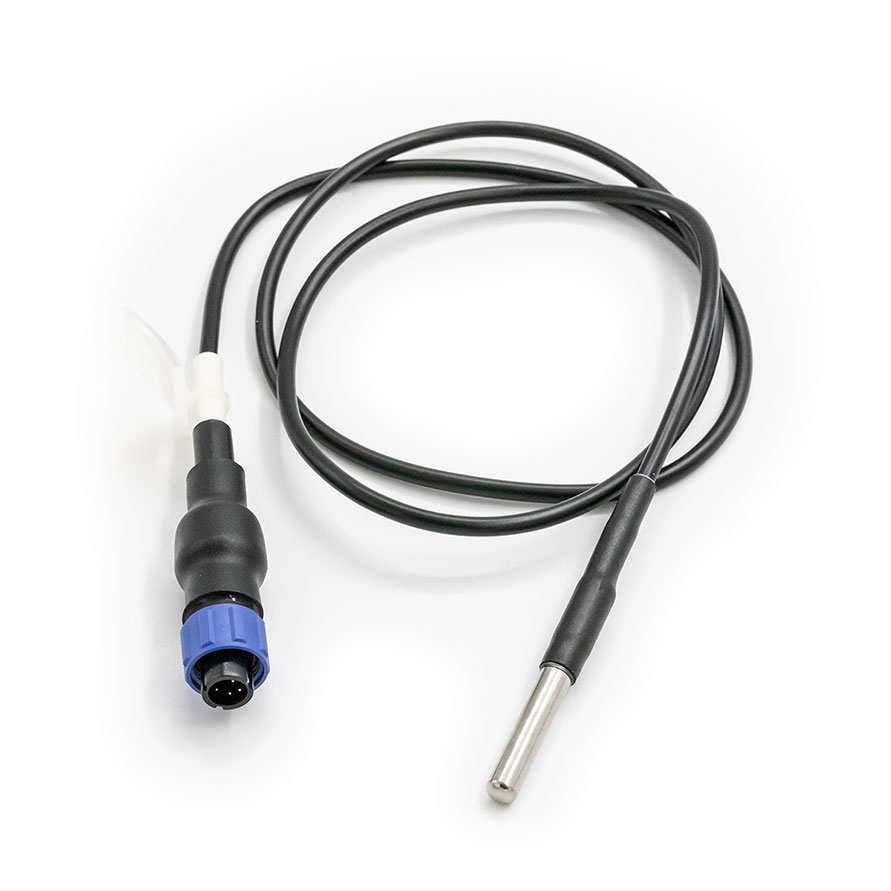

LumiSense is a single-point temperature sensor cable for the LumiCon concrete maturity monitoring system, connecting to a LumiNode data logger to track curing temperature inside the pour. A sensor that can't survive being cast into wet concrete or handled on a busy site produces gaps in the maturity curve right when the data matters most. LumiSense has a 13kg cable pull strength, so it holds up to routine handling during placement without the connection failing. It reads temperature to an accuracy of ±0.5°C between -10°C and 80°C, and ±1.0°C below -10°C, across an overall operating range of -30°C to 80°C. The cable is 3.2mm in diameter with a 4.0mm sensor head, carrying one sensor per cable. Concreters and QA teams use it to log curing temperature at a single point in a slab, footing, or precast element for maturity-based strength tracking.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
LumiSense is a single-point temperature sensor cable for the LumiCon concrete maturity monitoring system, connecting to a LumiNode data logger to track curing temperature inside the pour. A sensor that can’t survive being cast into wet concrete or handled on a busy site produces gaps in the maturity curve right when the data matters most. LumiSense has a 13kg cable pull strength, so it holds up to routine handling during placement without the connection failing. It reads temperature to an accuracy of ±0.5°C between -10°C and 80°C, and ±1.0°C below -10°C, across an overall operating range of -30°C to 80°C. The cable is 3.2mm in diameter with a 4.0mm sensor head, carrying one sensor per cable. Concreters and QA teams use it to log curing temperature at a single point in a slab, footing, or precast element for maturity-based strength tracking.
| Specification | Details |
|---|---|
| Operating Temperature Range | -30 to 80 °C |
| Temperature Accuracy | ±0.5°C (-10 to 80°C), ±1.0°C (below -10°C) |
| Cable Length | 1.8 m |
| Cable Diameter | 3.2 mm |
| Sensor Diameter | 4.0 mm |
| Cable Pull Strength | 13 kg |
| Sensors per Cable | 1 |
Download your LumiSense Concrete Maturity Sensor Cable resources:
LumiSense Concrete Maturity Sensor Cable does not have any Safety Data Sheets. Request here
About LumiSense Concrete Maturity Sensor Cable
LumiSense is a temperature sensor cable that connects to a LumiNode data logger to track curing temperature inside a concrete pour, used for maturity-based strength tracking.
LumiSense reads temperature to an accuracy of ±0.5°C between -10°C and 80°C, and ±1.0°C below -10°C.
This LumiSense cable is 1.8m (6 foot) long.
One LumiSense cable carries a single sensor.
LumiSense has a 13kg cable pull strength, which withstands routine handling and movement during concrete placement.
