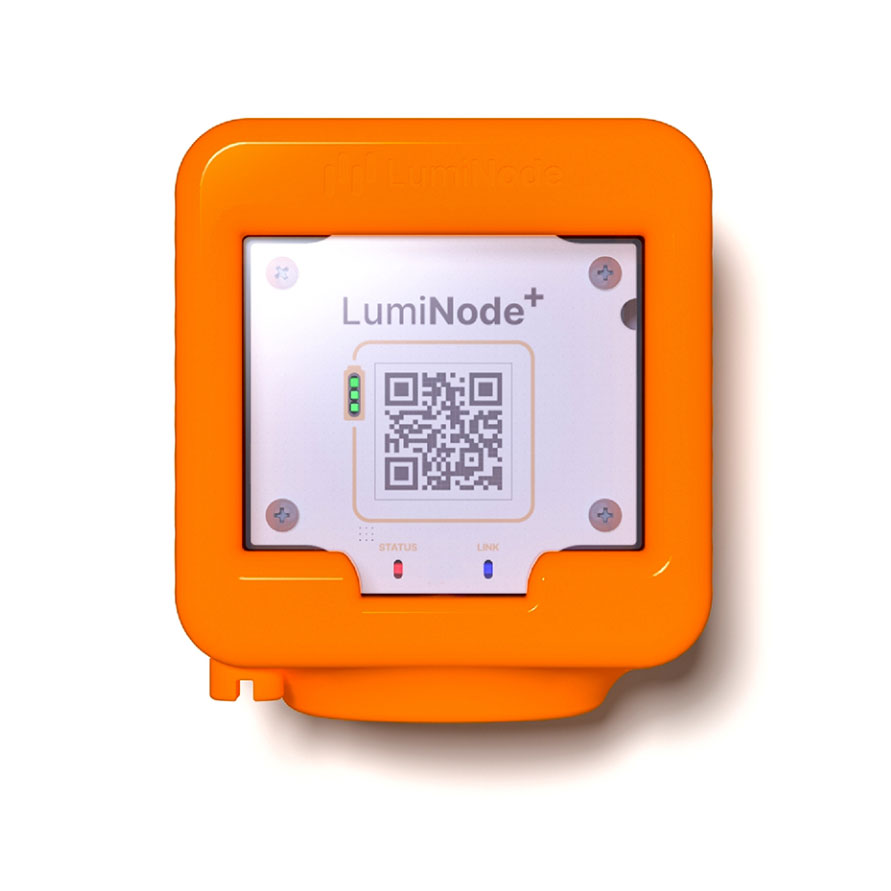

Lumicon LumiNode is the data logger and transmitter at the centre of the LumiCon concrete maturity monitoring system. Reading concrete strength off a maturity curve is only reliable if the temperature data behind it is continuous and accurate, and a logger that drops readings or dies mid-pour leaves a gap the site can't recover. LumiNode connects to LumiSense sensor cables embedded in the concrete and logs temperature data continuously, with 16MB of onboard storage, enough for around 10 years of data from a single LumiSense sensor. It's rated IP68, so it holds up to wet and dusty site conditions, and runs on a battery rated for 3 months in typical use or 6 months in North American conditions between USB-C charges. It operates across a -20°C to 60°C range and weighs 520g. Data is transmitted wirelessly to a LumiHub or direct to the cloud, where it's accessible in real time through the LumiCon app and dashboard, with automated alerts and customisable reports.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
Lumicon LumiNode is the data logger and transmitter at the centre of the LumiCon concrete maturity monitoring system. Reading concrete strength off a maturity curve is only reliable if the temperature data behind it is continuous and accurate, and a logger that drops readings or dies mid-pour leaves a gap the site can’t recover. LumiNode connects to LumiSense sensor cables embedded in the concrete and logs temperature data continuously, with 16MB of onboard storage, enough for around 10 years of data from a single LumiSense sensor. It’s rated IP68, so it holds up to wet and dusty site conditions, and runs on a battery rated for 3 months in typical use or 6 months in North American conditions between USB-C charges. It operates across a -20°C to 60°C range and weighs 520g. Data is transmitted wirelessly to a LumiHub or direct to the cloud, where it’s accessible in real time through the LumiCon app and dashboard, with automated alerts and customisable reports.
| Specification | Details |
|---|---|
| Dimensions | 10.8 x 10 x 8.3 cm |
| Net Weight | 520 g |
| IP Rating | IP68 |
| Operating Temperature Range | -20 to 60 °C |
| Battery Life | 3 months (global), 6 months (North America) |
| Charge Port | USB-C |
| Data Logger Capacity | 16 MB |
Download your Concrete Maturity LumiNode - Data Logger - Transmitter resources:
Concrete Maturity LumiNode - Data Logger - Transmitter does not have any Safety Data Sheets. Request here
About Concrete Maturity LumiNode - Data Logger - Transmitter
Lumicon LumiNode is a data logger and transmitter that connects to LumiSense sensor cables embedded in concrete, logging temperature data continuously to track curing and maturity.
The LumiNode battery lasts approximately 3 months in typical use, or up to 6 months in North American conditions, before it needs recharging via USB-C.
Yes. LumiNode is rated IP68, which means it withstands wet and dusty construction site conditions.
LumiNode has 16MB of onboard data logger capacity, enough to hold around 10 years of data from a single LumiSense sensor.
Data is transmitted wirelessly and accessible in real time through the LumiCon app and cloud dashboard, on any device, with customisable alerts and reports.
LumiNode operates across a temperature range of -20°C to 60°C.
