SKU: 6190-VPJT7230

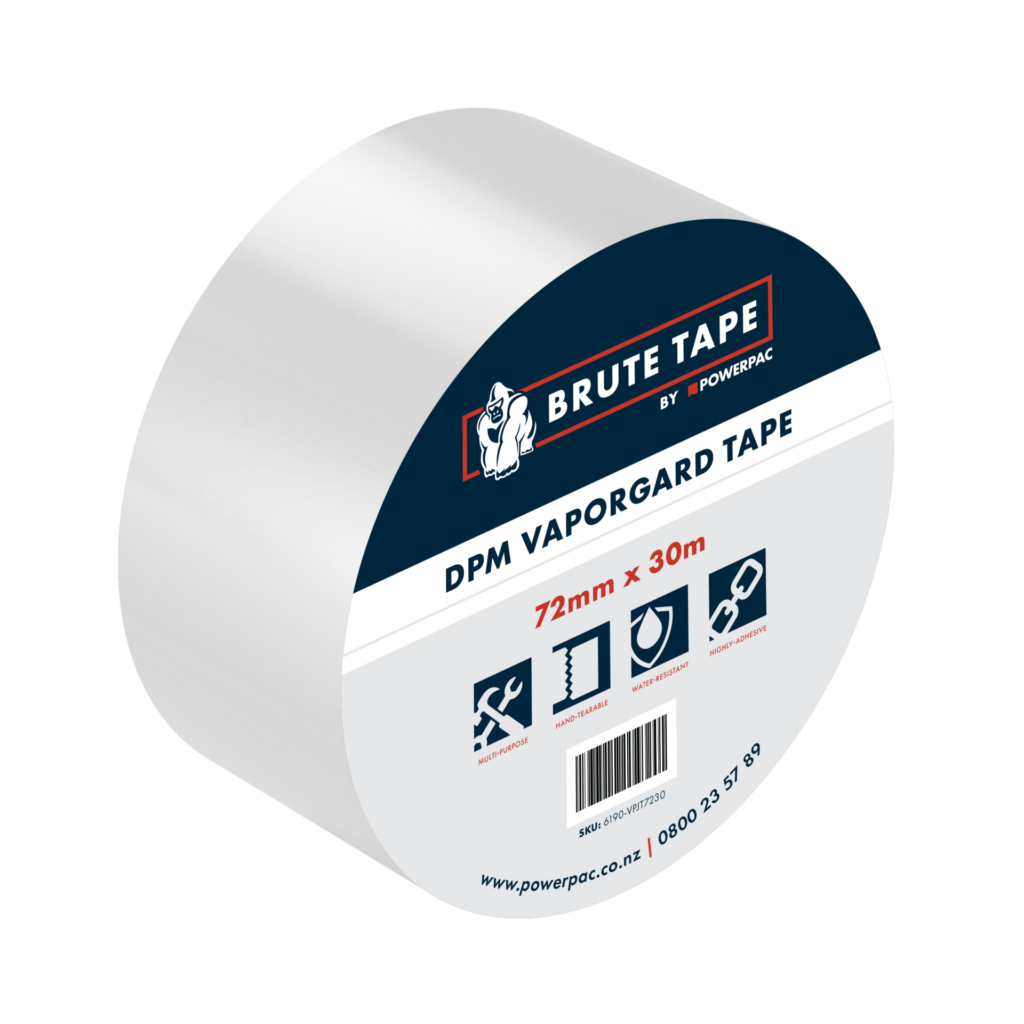

Vaporgard Jointing Tape is a high-tack, high-strength tape for jointing Vaporgard damp proof membrane and Smartform sacrificial formwork panels. A poorly sealed lap in a DPM or formwork joint lets moisture or grout bypass the barrier, undoing the protection the membrane or panel is there to provide. This tape is a PVC film with a rubber-based adhesive, giving an adhesion power of 1.6 N/25mm and a tensile strength of 23-24 N/25mm across its 0.11mm thickness. It withstands heat up to 60°C, holding its seal through the temperatures generated during a concrete pour and cure. Supplied in a 72mm x 30m roll, it seals lap zones and joints on both DPM and Smartform panel installations. Concreters and formwork crews use it wherever Vaporgard DPM or Smartform panels need a continuous, moisture-tight joint.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
Vaporgard Jointing Tape is a high-tack, high-strength tape for jointing Vaporgard damp proof membrane and Smartform sacrificial formwork panels. A poorly sealed lap in a DPM or formwork joint lets moisture or grout bypass the barrier, undoing the protection the membrane or panel is there to provide. This tape is a PVC film with a rubber-based adhesive, giving an adhesion power of 1.6 N/25mm and a tensile strength of 23-24 N/25mm across its 0.11mm thickness. It withstands heat up to 60°C, holding its seal through the temperatures generated during a concrete pour and cure. Supplied in a 72mm x 30m roll, it seals lap zones and joints on both DPM and Smartform panel installations. Concreters and formwork crews use it wherever Vaporgard DPM or Smartform panels need a continuous, moisture-tight joint.
| Specification | Details |
|---|---|
| Width | 72 mm |
| Length | 30 m |
| Thickness | 0.11 mm |
| Material | PVC film with rubber-based adhesive |
| Adhesion Power | 1.6 N/25mm |
| Tensile Strength | 23-24 N/25mm |
| Heat Resistance | 60 °C |
| Certification | BRANZ Appraised |
Download your Vaporgard Jointing Tape - 72mm x 30m resources:
Vaporgard Jointing Tape - 72mm x 30m does not have any Safety Data Sheets. Request here
About Vaporgard Jointing Tape - 72mm x 30m
It's used to seal joints and lap zones on Vaporgard damp proof membrane and Smartform sacrificial formwork panels.
It comes in a 72mm x 30m roll.
It's a PVC film with a rubber-based adhesive.
It withstands heat up to 60°C.
It has an adhesion power of 1.6 N/25mm and a tensile strength of 23-24 N/25mm.
Yes, it's BRANZ appraised for New Zealand building conditions.
