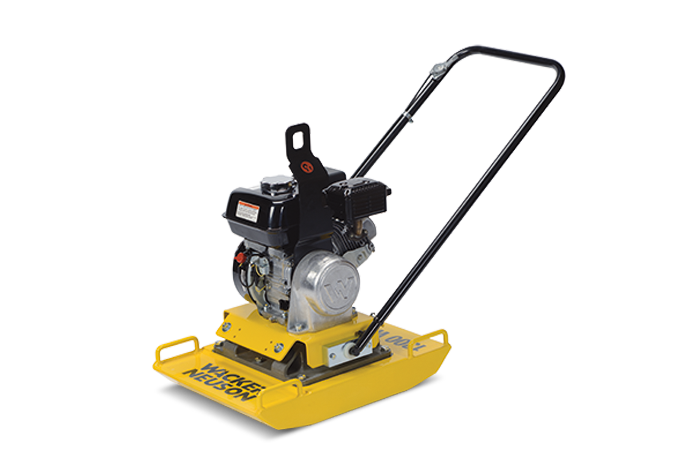

Wacker Neuson – VPY70 – Diesel Engine

With a range of reliable and powerful engines low weight compact dimensions and low-maintenance design the VP 70 series Vibratory Plates are ideal for compaction of sand crushed rock granular materials and segmental brick paving.

• Compact design with centrally mounted for an even spread of compactive force over the whole base plate.
• Sturdy 4-stroke petrol or diesel engine with recoil starter is isolated from vibration by rubber dampers.
• Vibration isolated reversible handle with throttle control for ease of operation and reduced operator fatigue.
• Conveniently placed lifting handles and a central lifting point for safe and easy handling.
• Low maintenance design backed by Wacker Neuson quality reliability and product support.

Operating data
Operating weight: 90kg
Centrifugal force: 20kN
Base plate size (l x w): 0610 x 460mm
Height Lowest working: 611mm
Frequency: 116.6Hz
Advance travel (depending on soil): 28m/min
Surface capacity (depending on soil): 770m²/h

Engine / Motor
Engine / Motor type: Air-cooled single cylinder diesel engine
Engine / Motor manufacturer: Yanmar
Displacement: 211cm³
Engine performance max. (DIN ISO 3046): 3.5kW
at rpm: 3 600rpm
Fuel consumption: 0.96l/h
Tank capacity (Fuel): 2.5l
Tank capacity: l3.8l
Power transmission: Power transmission from engine via centrifugal clutch and V-belt onto exciter which transmits centrifugal force onto baseplate.

SKU: 0007001
