SKU: 6101-RBTL2B

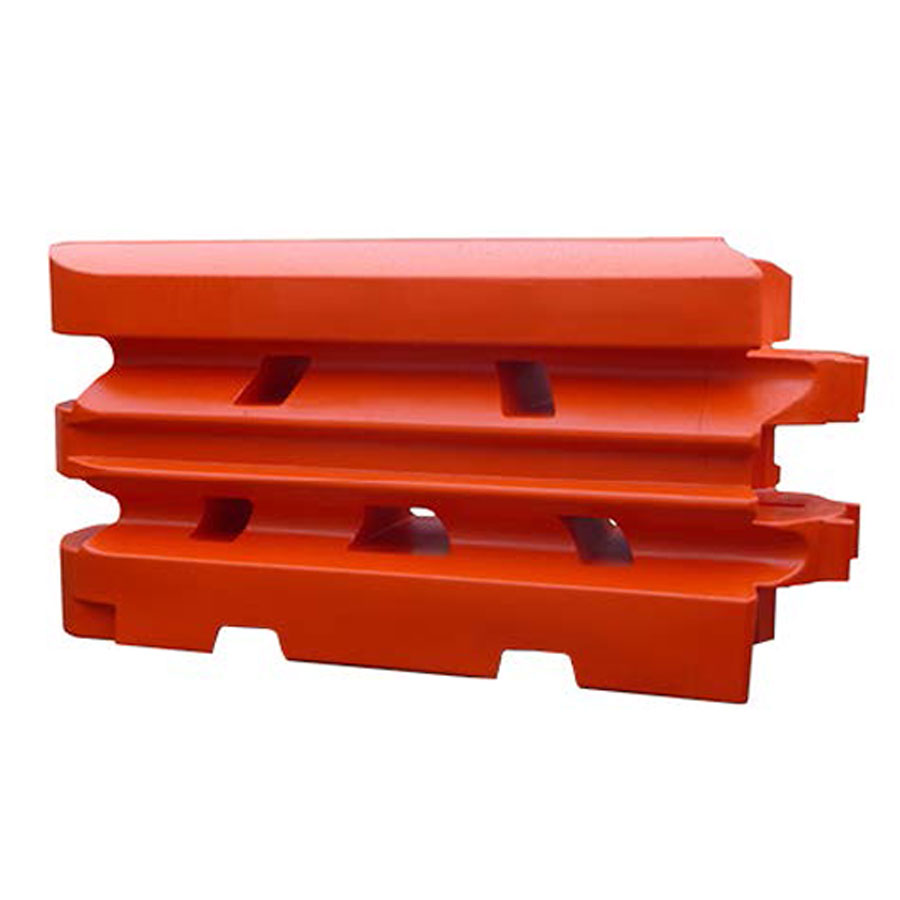

Ricochet Temporary Crash Barrier is a TL-2 rated, water-filled safety barrier engineered for energy absorption during a vehicle impact, reducing injury rather than just blocking a lane. Roadworks and temporary lane closures put workers and the public at risk from vehicles running into the work zone at speed. Ricochet meets the TL-2 rating under the AASHTO MASH-1 standard, suitable for speeds up to 70km/h, and is the first barrier system to achieve MASH standards in New Zealand. Each barrier measures 2000mm long, 1000mm high and 580mm wide, with a pin-to-pin length of 1.7m once interconnected. It weighs 62kg empty or 660kg filled, with a 600-litre water capacity, and drain points on each side plus a dedicated fill point make filling and emptying straightforward on site. Two 22mm mounting holes at the top let screens be fitted. At 1m high, the barrier complies with CoPTTM section B6, so additional safety fencing typically isn't required. Traffic management contractors and civil site managers use it wherever workers need protection from vehicle incursion at speed-restricted work zones.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
Ricochet Temporary Crash Barrier is a TL-2 rated, water-filled safety barrier engineered for energy absorption during a vehicle impact, reducing injury rather than just blocking a lane. Roadworks and temporary lane closures put workers and the public at risk from vehicles running into the work zone at speed. Ricochet meets the TL-2 rating under the AASHTO MASH-1 standard, suitable for speeds up to 70km/h, and is the first barrier system to achieve MASH standards in New Zealand. Each barrier measures 2000mm long, 1000mm high and 580mm wide, with a pin-to-pin length of 1.7m once interconnected. It weighs 62kg empty or 660kg filled, with a 600-litre water capacity, and drain points on each side plus a dedicated fill point make filling and emptying straightforward on site. Two 22mm mounting holes at the top let screens be fitted. At 1m high, the barrier complies with CoPTTM section B6, so additional safety fencing typically isn’t required. Traffic management contractors and civil site managers use it wherever workers need protection from vehicle incursion at speed-restricted work zones.
| Specification | Details |
|---|---|
| Length | 2 m |
| Height | 1 m |
| Width | 0.58 m |
| Pin-to-Pin Length (Interconnected) | 1.7 |
| Weight (Empty) | 62 |
| Weight (Filled) | 660 |
| Water Capacity | 600 |
| Rating | TL-2 (AASHTO MASH-1) |
| Compliance | CoPTTM Section B6 |
Download your Ricochet Temporary Crash Barrier TL-2 resources:
Ricochet Temporary Crash Barrier TL-2 does not have any Safety Data Sheets. Request here
About Ricochet Temporary Crash Barrier TL-2
TL-2 rated under the AASHTO MASH-1 standard, suitable for speeds up to 70km/h.
2000mm long, 1000mm high and 580mm wide, with a pin-to-pin length of 1.7m once interconnected.
62kg empty and 660kg filled, with a 600-litre water fill capacity.
No, at 1m high it complies with CoPTTM section B6, so additional safety fencing is typically unnecessary.
Each barrier has drain points on each side and a dedicated fill point for straightforward filling and water extraction on site.
Yes, two 22mm mounting holes at the top of each barrier allow screens to be installed.
With the Ricochet Barrier End Treatment (6101-RBTL2ET), a flat end unit not intended to be water-filled.
