Description

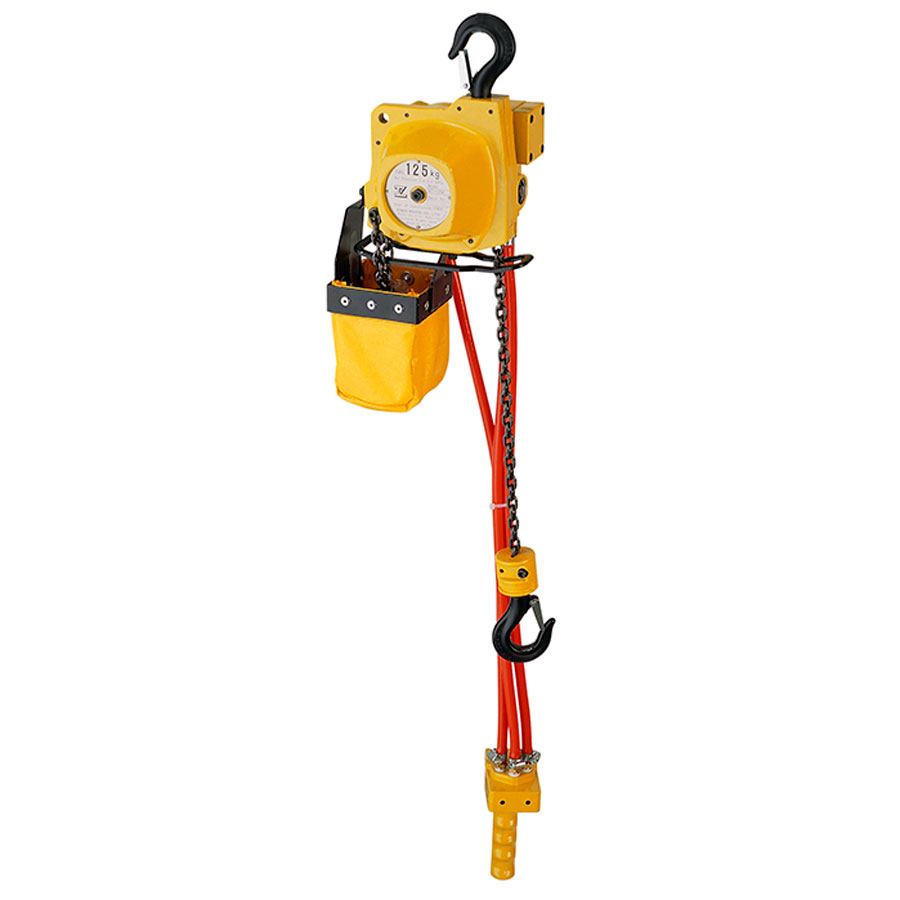

User-friendly operations are central to the AT-125K. A control button on the pendant switch facilitates easy handling, and for the AT-60-K-5 and AT-125-K-5 models, an emergency stop button on the pendant switch is standard, ensuring quick response in precarious situations.
Notably, the AT-125K features an extendable surface-hardened load chain made from alloy steel, guaranteeing toughness and resistance against wear and tear. This feature not only improves the hoist’s durability but also adds a layer of safety during lifting operations.
The Endo Air Hoist – AT-125K, with its combination of strength, safety, and straightforward operation, reflects Endo’s unwavering commitment to top-tier performance in lifting operations. Choose the AT-125K for unmatched reliability, precision, and operational safety in your workspace.
Model | Rated load (kg) | Stroke (m) | Air pressure Mpa(kgf/c㎡) | Lifting speed (m/min) | Air consumption (m³/min) | Chain (size x fall) | Air inlet | Mass (kg) |
---|---|---|---|---|---|---|---|---|
EHL-025TS | 250 | 3 | 0.4(4) | 12.0 | 0.9 | 6.3×1 | Rp 1/2 | 20.0 |
EHL-025TS | 250 | 3 | 0.5(5) | 16.0 | 1.3 | 6.3×1 | Rp 1/2 | 20.0 |
EHL-025TS | 250 | 3 | 0.6(6) | 18.0 | 1.6 | 6.3×1 | Rp 1/2 | 20.0 |
