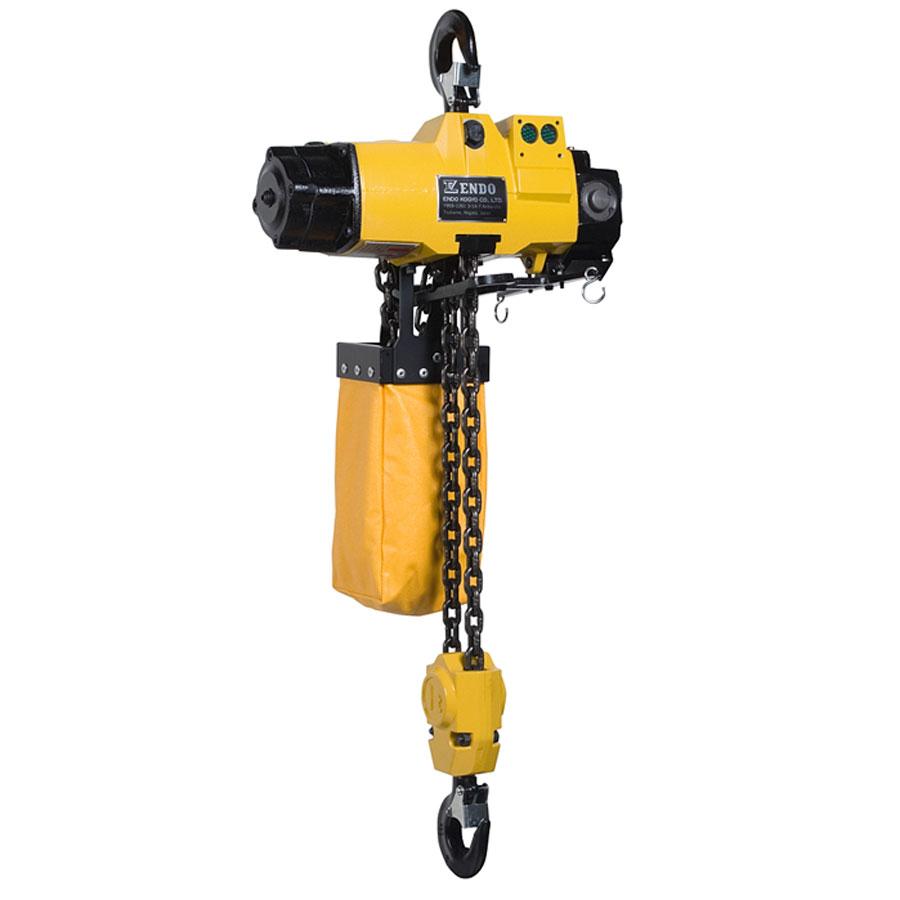

Endo Air Hoist 1000kg 3m Lift c/w Pendant Control (8m) with E Stop 1000kg x 3m

SKU: EHL-1TW/3m/PCS1 with E Stop

$10,700.00 + GST

The Endo Air Hoist EHL-1TW with pendant control lifts up to 1,000 kg through a 3 m lift. It comes with an 8 m pendant control that includes an E stop. It runs on compressed air. Site and workshop crews call this type of unit an air chain hoist or pneumatic hoist.

The pendant replaces the pull cord on the standard EHL-1TW. Endo lists the EHL-TW series for operation at 0.4 to 0.6 MPa air pressure through an Rp 1/2 air inlet, and air consumption and lifting speed rise with pressure. The hoist hangs from an overhead fixing point or trolley that must carry the hoist and the load together. Powerpac has not published a test certificate for this model, so check the Endo manual and your site's lifting procedures before first use.

Riggers and maintenance crews use this Endo 1 tonne air hoist with a pendant control to lift loads over a 3 m travel. Do not use it to lift people.

Read more

Key Specs

  • Capacity: 1000kg
  • Lift: 3m
  • Power: Compressed air
  • Control: Pendant with E stop
See All Specifications
Out of Stock

Need a quote? Simply add to cart and you have the option to request a quote before checkout

Categories:

What is Endo Air Hoist 1000kg 3m Lift c/w Pendant Control (8m) with E Stop?

The Endo Air Hoist EHL-1TW with pendant control lifts up to 1,000 kg through a 3 m lift. It comes with an 8 m pendant control that includes an E stop. It runs on compressed air. Site and workshop crews call this type of unit an air chain hoist or pneumatic hoist.

The pendant replaces the pull cord on the standard EHL-1TW. Endo lists the EHL-TW series for operation at 0.4 to 0.6 MPa air pressure through an Rp 1/2 air inlet, and air consumption and lifting speed rise with pressure. The hoist hangs from an overhead fixing point or trolley that must carry the hoist and the load together. Powerpac has not published a test certificate for this model, so check the Endo manual and your site’s lifting procedures before first use.

Riggers and maintenance crews use this Endo 1 tonne air hoist with a pendant control to lift loads over a 3 m travel. Do not use it to lift people.

Benefits

  • Lifts up to 1,000 kg with the Endo Air Hoist EHL-1TW pendant version
  • Gives a 3 m lift
  • Includes an 8 m pendant control with an E stop
  • Runs on compressed air, so the Endo EHL-1TW needs no electric motor
  • Matches the pull cord EHL-1TW for capacity and lift

Technical Specifications

Specification Details
Capacity 1000 kg
Lift 3 m
Power Compressed air
Control Pendant with E stop
Pendant Length 8 m
Chain Two fall
