Connolly Expansion Joint Only 200mm x 3.0m 200mm x 3m

SKU: 6193-EXJ20030

$126.18 + GST

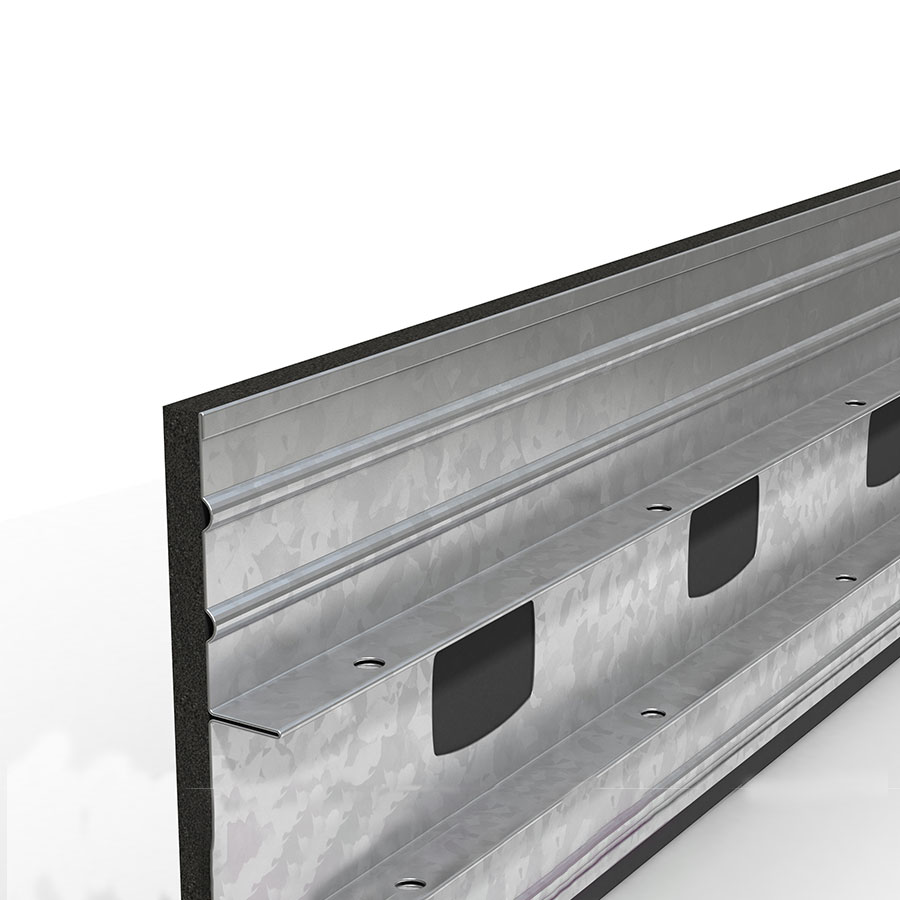

The Connolly Expansion Joint Only 200 mm x 3.0 m is a galvanised steel expansion joint profile for concrete slabs. It is also called a slab expansion joint or isolation joint.

A slab needs room to move. The profile gives expansion capacity over the full depth of the slab, allows up to 10 mm of expansion and lets crews pour continuously across the joint.

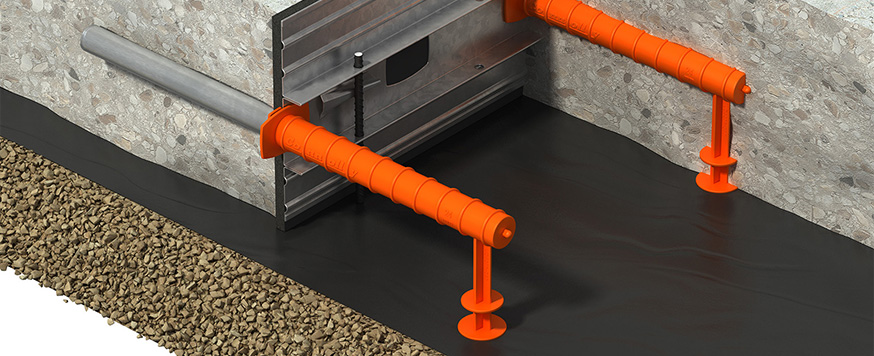

The profile has pre-formed holes for Connolly Universal Dowel Sleeves (UDS), which fit with a patented twist-fix feature. The holes take round dowels up to 30 mm and square dowels up to 24 mm. A patented wedge fixing mechanism sets the height quickly, and the profile can be used to screed off.

Concrete contractors in NZ use Connolly expansion joints in warehouse and industrial floors. This listing is the joint only, without pegs, wedges or dowel sleeves.

Read more

Key Specs

  • Profile height: 200mm
  • Length: 3m
  • Expansion: 10mm
  • Round dowel: 30mm
See All Specifications
In Stock

Need a quote? Simply add to cart and you have the option to request a quote before checkout

Categories:

What is Connolly Expansion Joint Only 200mm x 3.0m?

The Connolly Expansion Joint Only 200 mm x 3.0 m is a galvanised steel expansion joint profile for concrete slabs. It is also called a slab expansion joint or isolation joint.

A slab needs room to move. The profile gives expansion capacity over the full depth of the slab, allows up to 10 mm of expansion and lets crews pour continuously across the joint.

The profile has pre-formed holes for Connolly Universal Dowel Sleeves (UDS), which fit with a patented twist-fix feature. The holes take round dowels up to 30 mm and square dowels up to 24 mm. A patented wedge fixing mechanism sets the height quickly, and the profile can be used to screed off.

Concrete contractors in NZ use Connolly expansion joints in warehouse and industrial floors. This listing is the joint only, without pegs, wedges or dowel sleeves.

Benefits

  • Allows up to 10 mm of expansion
  • Gives expansion capacity over the full depth of the slab
  • Enables continuous pours
  • Twist-fix feature keeps dowels aligned for unhindered slab movement
  • Patented wedge fixing mechanism for fast, accurate height adjustment
  • Galvanised coating protects against corrosion
  • Stiffening ribs give straighter joints

Main Applications

  • Warehouse and industrial floor slabs
  • Expansion joints between slab pours
  • Slabs 100 mm to 200 mm thick
  • Continuous pour slab construction

Technical Specifications

Specification Details
Profile height 200 mm
Length 3 m
Expansion 10 mm
Round dowel 30 mm
Square dowel 24 mm
Finish Galvanised
