Z Bar Flange Plate 120x120x10mm, 20mm hole 120 x 120mm x 10mm

SKU: 6193-ZFP121210

$18.00 + GST

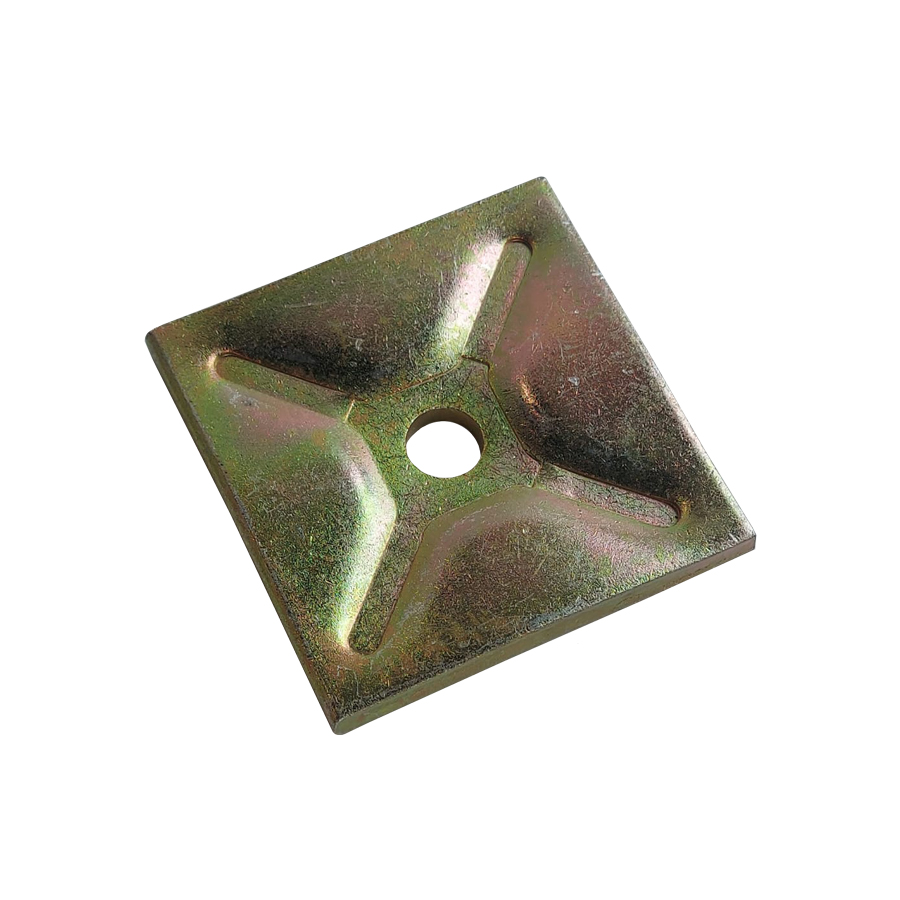

The Z Bar Flange Plate 120x120x10mm is a square steel plate, 120mm by 120mm and 10mm thick, with a 20mm hole through the centre. The hole lets the 15mm Z bar pass through, and the plate spreads the nut's clamping load across the form face. One plate weighs about 1kg.

Fit the plate on each end of the tie bar behind a nut. The wide 120mm face protects the timber or ply from being crushed when the tie is tightened. Powerpac also stocks the Z bar in a 15mm x 3000mm length, along with the plate nut, wing nut and joiner.

Powerpac has not published the steel grade or the load rating for this plate, so get the safe working load from the formwork designer.

Read more

Key Specs

  • Plate Size: 120 x 120mm
  • Thickness: 10mm
  • Hole Diameter: 20mm
  • Weight: 1kg
See All Specifications
In Stock

Need a quote? Simply add to cart and you have the option to request a quote before checkout

Categories:

What is Z Bar Flange Plate 120x120x10mm, 20mm hole?

The Z Bar Flange Plate 120x120x10mm is a square steel plate, 120mm by 120mm and 10mm thick, with a 20mm hole through the centre. The hole lets the 15mm Z bar pass through, and the plate spreads the nut’s clamping load across the form face. One plate weighs about 1kg.

Fit the plate on each end of the tie bar behind a nut. The wide 120mm face protects the timber or ply from being crushed when the tie is tightened. Powerpac also stocks the Z bar in a 15mm x 3000mm length, along with the plate nut, wing nut and joiner.

Powerpac has not published the steel grade or the load rating for this plate, so get the safe working load from the formwork designer.

Benefits

  • Spreads the clamping load over a 120mm x 120mm face
  • Passes the 15mm Z bar through a 20mm centre hole
  • Gives 10mm of plate thickness for a stiff bearing face
  • Weighs about 1kg per plate
  • Works with the Z bar, wing nut and other tie parts in the Powerpac range

Technical Specifications

Specification Details
Plate Size 120 x 120 mm
Thickness 10 mm
Hole Diameter 20 mm
Weight 1 kg
