SKU: GME-900

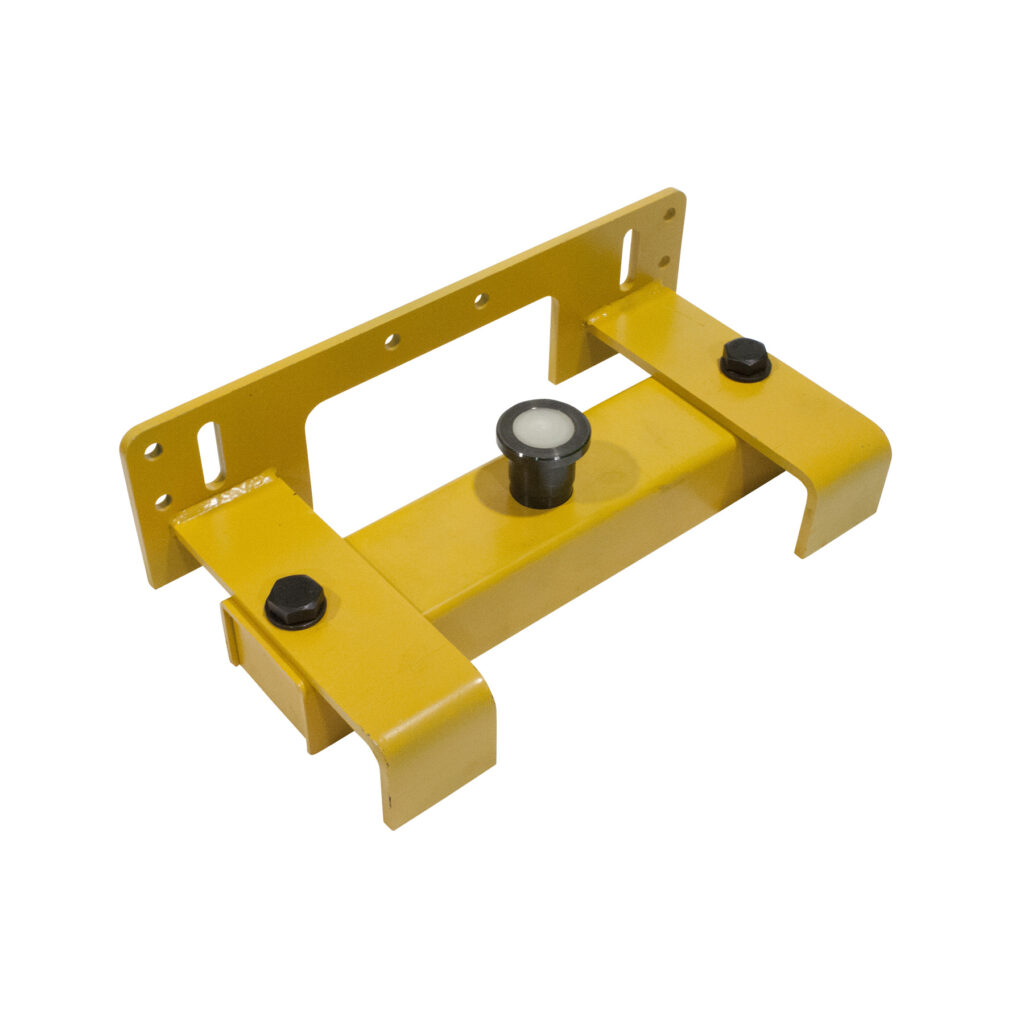

The Precast Magnet is a shuttering magnet built to hold formwork fittings and cast-in items against a steel mould face during a precast pour. Loose fittings shift out of position as concrete is placed, throwing off the finished panel's dimensions or fixing points. A magnet surrounded by a steel casing and fitted with an engage/disengage handle locks the fitting against the ferrous mould surface, holding it dead still through the pour. Placing it is a single motion: position it where it's needed and push down on the handle to engage the magnet. It measures 280 x 60 x 40mm and weighs 2.8kg, built for repeated daily use in a precast yard. This magnet is supplied without the formwork clamp, sold separately, and is removed from the mould with a pry bar rather than by hand. Precasters use it wherever a fitting, insert, or void former needs to stay exactly in place against a steel mould through the pour.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
The Precast Magnet is a shuttering magnet built to hold formwork fittings and cast-in items against a steel mould face during a precast pour. Loose fittings shift out of position as concrete is placed, throwing off the finished panel’s dimensions or fixing points. A magnet surrounded by a steel casing and fitted with an engage/disengage handle locks the fitting against the ferrous mould surface, holding it dead still through the pour. Placing it is a single motion: position it where it’s needed and push down on the handle to engage the magnet. It measures 280 x 60 x 40mm and weighs 2.8kg, built for repeated daily use in a precast yard. This magnet is supplied without the formwork clamp, sold separately, and is removed from the mould with a pry bar rather than by hand. Precasters use it wherever a fitting, insert, or void former needs to stay exactly in place against a steel mould through the pour.
| Specification | Details |
|---|---|
| Size | 280 x 60 x 40 mm |
| Weight | 2.8 kg |
| Casing | Steel |
| Included | Formwork clamp not included, sold separately |
Download your Precast Magnet - 280 x 60 x 40mm (Formwork Clamp not included) resources:
Precast Magnet - 280 x 60 x 40mm (Formwork Clamp not included) does not have any Safety Data Sheets. Request here
About Precast Magnet - 280 x 60 x 40mm (Formwork Clamp not included)
It's a shuttering magnet used to hold formwork fittings and cast-in items against a steel mould face during a precast pour.
It's placed where needed and the handle is pushed down to engage the magnet against the ferrous mould surface.
It's removed by lifting the handle with a pry bar, which releases the magnet from the mould surface.
No. The clamp is sold separately as the Precast Magnet Formwork Bracket.
It measures 280 x 60 x 40mm and weighs 2.8kg.
It attaches to ferrous (steel) mould surfaces, not to timber or non-magnetic formwork.
