SKU: ESB08050G-50

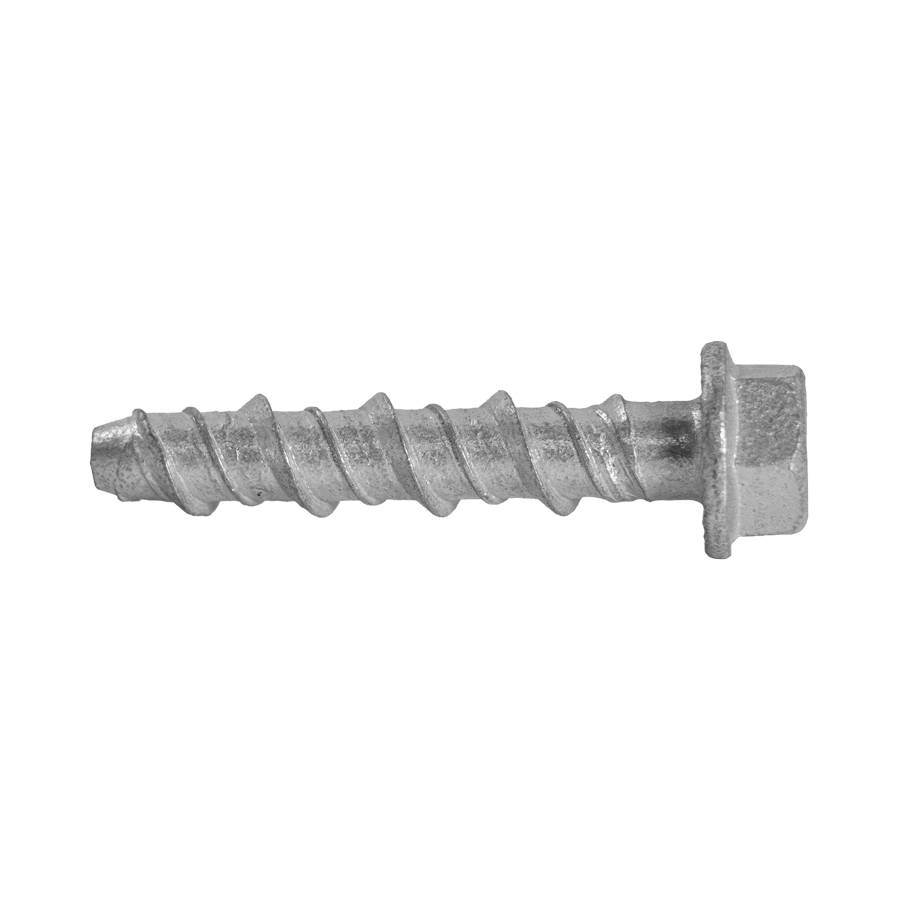

Economy Screw Bolt Hex M8 x 50mm Galv is a hex head galvanised screw bolt for fixing into concrete. It is an M8 anchor, 50mm long, and it is driven with a socket or spanner. Powerpac sells it in a pack of 50.
A screw bolt is a threaded anchor that cuts its own thread into a pre-drilled hole, so a fixture can be bolted down without resin or an expansion sleeve. The hex head takes a standard socket, which makes the M8 x 50mm screw bolt quick to fit through plates, brackets and battens. Each pack of 50 weighs 1.4kg.
Powerpac holds only limited load data for this anchor, so do not use it where a design load must be verified. Powerpac also stocks the Economy Screw Bolt in M6, M8, M10, M12 and M16 sizes. Builders also call it a concrete screw bolt or masonry screw bolt.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
Economy Screw Bolt Hex M8 x 50mm Galv is a hex head galvanised screw bolt for fixing into concrete. It is an M8 anchor, 50mm long, and it is driven with a socket or spanner. Powerpac sells it in a pack of 50.
A screw bolt is a threaded anchor that cuts its own thread into a pre-drilled hole, so a fixture can be bolted down without resin or an expansion sleeve. The hex head takes a standard socket, which makes the M8 x 50mm screw bolt quick to fit through plates, brackets and battens. Each pack of 50 weighs 1.4kg.
Powerpac holds only limited load data for this anchor, so do not use it where a design load must be verified. Powerpac also stocks the Economy Screw Bolt in M6, M8, M10, M12 and M16 sizes. Builders also call it a concrete screw bolt or masonry screw bolt.
| Specification | Details |
|---|---|
| Diameter | M8 |
| Length | 50 mm |
| Head Type | Hex |
| Finish | Galvanised |
| Quantity per Pack | 50 |
| Pack Weight | 1.4 kg |
Download your Economy Screw Bolt Hex M8 x 50mm Galv - 50pk resources:
Economy Screw Bolt Hex M8 x 50mm Galv - 50pk does not have any Safety Data Sheets. Request here
About Economy Screw Bolt Hex M8 x 50mm Galv - 50pk
Economy Screw Bolt Hex M8 x 50mm Galv fixes brackets, plates and battens to concrete. It is an M8 hex head screw bolt, 50mm long, with a galvanised finish. Powerpac sells it in a pack of 50.
A screw bolt is a threaded anchor that cuts its own thread into a pre-drilled hole in concrete. Builders also call it a concrete screw bolt or masonry screw bolt. It needs no resin and no expansion sleeve.

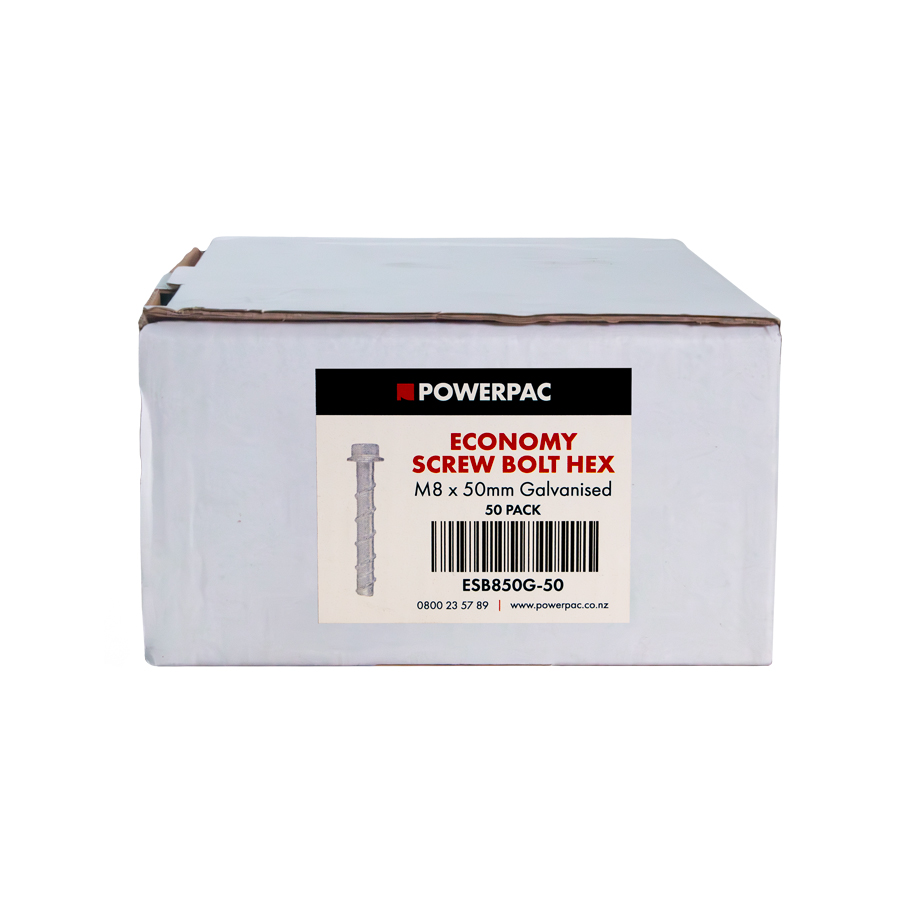

A pack of Economy Screw Bolt Hex M8 x 50mm Galv holds 50 screw bolts. The full pack weighs 1.4kg.
Powerpac holds only limited load data for this anchor, so do not use it where a design load must be verified. For structural or safety-critical fixings, use an anchor with published load data and have the fixing checked by the designer.
The screw bolt has a galvanised finish. Powerpac has not published a corrosion class for this SKU, so check the coating against the exposure before using it in coastal or wet locations.
Powerpac stocks the Economy Screw Bolt Hex Galv in M6, M8, M10, M12 and M16. The M8 range runs in 50mm, 75mm and 100mm lengths. Pack sizes vary with the diameter and length.
