SKU: ESB10100G-50

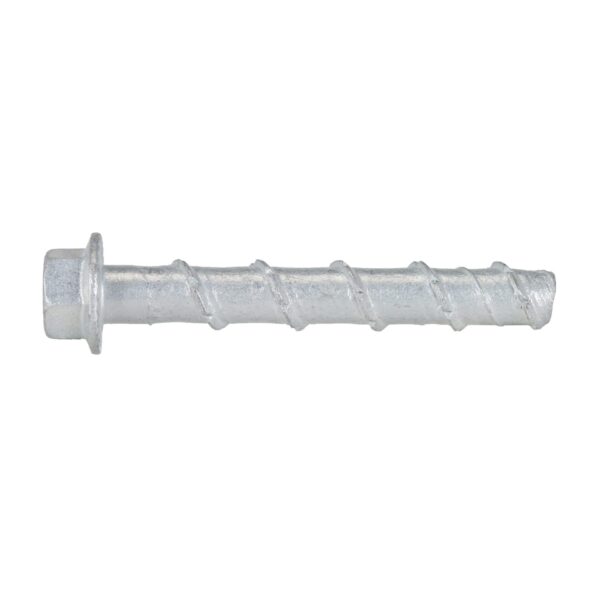

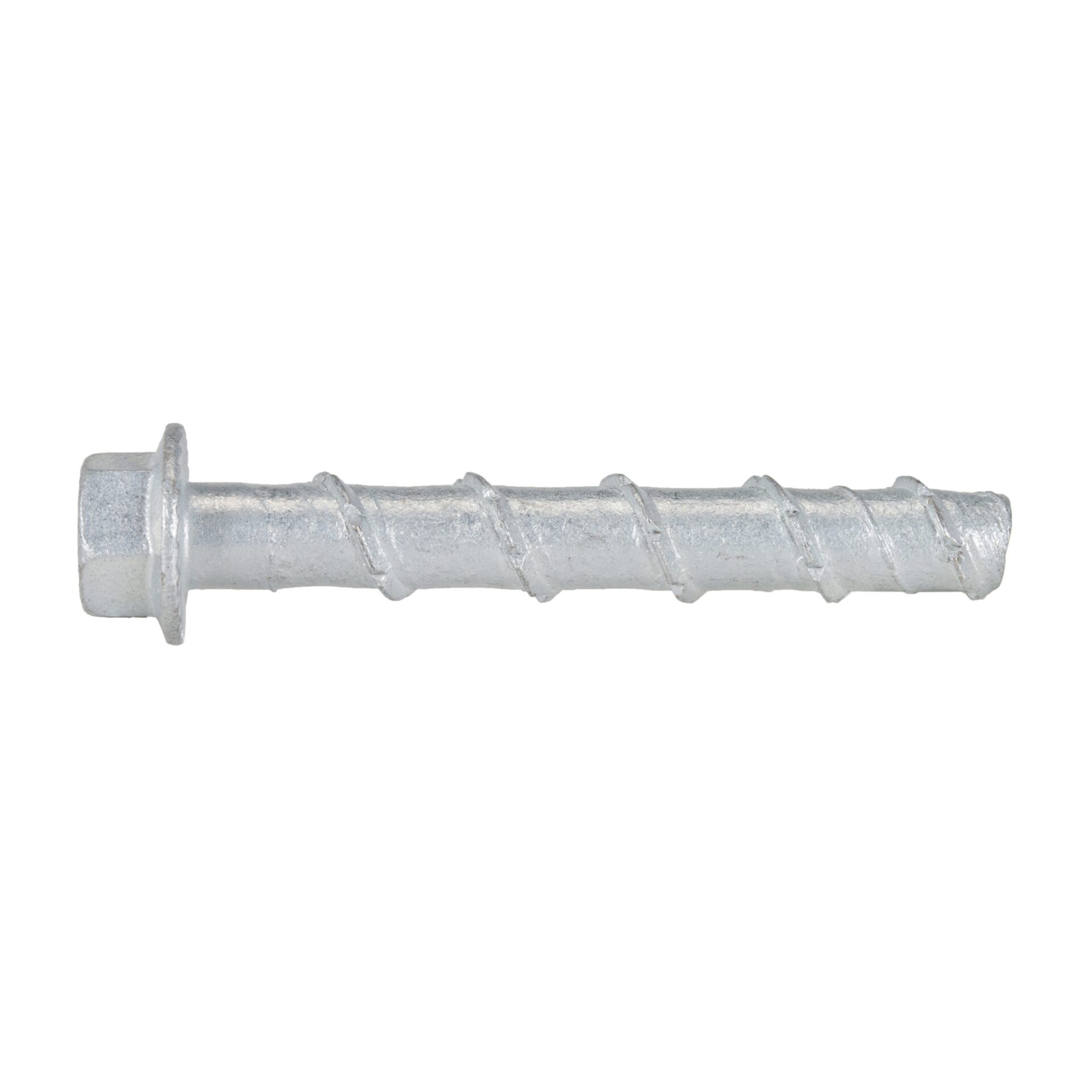

Economy Screw Bolt Hex M10 x 100mm Galv is a hex head galvanised screw bolt for fixing into concrete. It is an M10 anchor, 100mm long, and it is driven with a socket or spanner. This listing is the 50 pack. Powerpac also sells the same screw bolt in a pack of 25.
A screw bolt is a threaded anchor that cuts its own thread into a pre-drilled hole, so a fixture can be bolted down without resin or an expansion sleeve. The hex head takes a standard socket, which makes the M10 x 100mm screw bolt quick to fit through thicker timber, packers and brackets. Each pack of 50 weighs 4kg.
Powerpac holds only limited load data for this anchor, so do not use it where a design load must be verified. Powerpac also stocks the Economy Screw Bolt in M6, M8, M10, M12 and M16 sizes. Builders also call it a concrete screw bolt or masonry screw bolt.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
Economy Screw Bolt Hex M10 x 100mm Galv is a hex head galvanised screw bolt for fixing into concrete. It is an M10 anchor, 100mm long, and it is driven with a socket or spanner. This listing is the 50 pack. Powerpac also sells the same screw bolt in a pack of 25.
A screw bolt is a threaded anchor that cuts its own thread into a pre-drilled hole, so a fixture can be bolted down without resin or an expansion sleeve. The hex head takes a standard socket, which makes the M10 x 100mm screw bolt quick to fit through thicker timber, packers and brackets. Each pack of 50 weighs 4kg.
Powerpac holds only limited load data for this anchor, so do not use it where a design load must be verified. Powerpac also stocks the Economy Screw Bolt in M6, M8, M10, M12 and M16 sizes. Builders also call it a concrete screw bolt or masonry screw bolt.
| Specification | Details |
|---|---|
| Diameter | M10 |
| Length | 100 mm |
| Head Type | Hex |
| Finish | Galvanised |
| Quantity per Pack | 50 |
| Pack Weight | 4 kg |
Download your Economy Screw Bolt Hex M10 x 100mm Galv - 50pk resources:
Economy Screw Bolt Hex M10 x 100mm Galv - 50pk does not have any Safety Data Sheets. Request here
About Economy Screw Bolt Hex M10 x 100mm Galv - 50pk
Economy Screw Bolt Hex M10 x 100mm Galv fixes brackets, plates and timber to concrete. It is an M10 hex head screw bolt, 100mm long, with a galvanised finish. This listing is a pack of 50.
A screw bolt is a threaded anchor that cuts its own thread into a pre-drilled hole in concrete. Builders also call it a concrete screw bolt or masonry screw bolt. It needs no resin and no expansion sleeve.
This pack of Economy Screw Bolt Hex M10 x 100mm Galv holds 50 screw bolts and weighs 4kg. A 25 pack of the same screw bolt is also available.
Powerpac holds only limited load data for this anchor, so do not use it where a design load must be verified. For structural or safety-critical fixings, use an anchor with published load data and have the fixing checked by the designer.
The screw bolt has a galvanised finish. Powerpac has not published a corrosion class for this SKU, so check the coating against the exposure before using it in coastal or wet locations.
Powerpac stocks the Economy Screw Bolt Hex Galv in M6, M8, M10, M12 and M16. The M10 range runs in 60mm, 75mm and 100mm lengths, and the 100mm length comes in packs of 25 and 50.
