SKU: 6190-PLD182.1NT

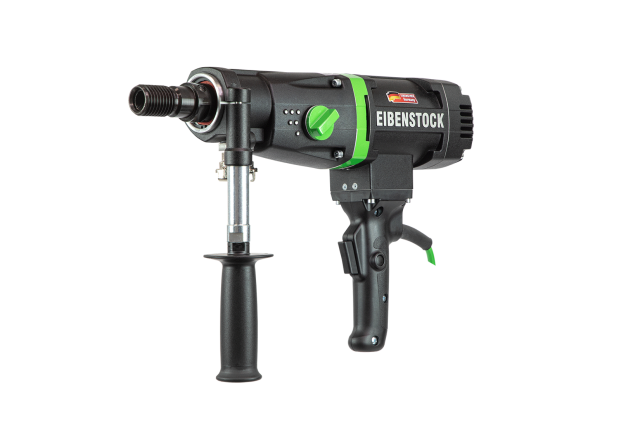

The Eibenstock Core Drill Motor drills holes up to Ø182mm (Ø202mm with the right adapter) in the toughest job-site materials. Dry drilling handles sand-lime brick, brickwork, clinker, and other abrasive masonry, and wet drilling suits reinforced concrete, natural stone, and asphalt. A quick adapter change swaps the motor between wet and dry setups, and its 3-speed oil-bath transmission keeps lubrication consistent in every working position through a purpose-built oil pump. The combination spindle holds an integrated centering rod, and electronic controls add a soft start, temperature and overload cut-off, an overload display, constant speed control, and a service display that flags when the carbon brushes need replacing. A mechanical safety clutch protects the operator if the bit binds, and the resistant PUR cable holds up to construction site conditions. Supplied in a case with connections for dust extraction and water supply and a jaw wrench, it suits drilling operators, civil engineers, and plumbing, heating, and ventilation contractors coring holes through concrete, masonry, and stone.
Need a quote? Simply add to cart and you have the option to request a quote before checkout
The Eibenstock Core Drill Motor drills holes up to Ø182mm (Ø202mm with the right adapter) in the toughest job-site materials. Dry drilling handles sand-lime brick, brickwork, clinker, and other abrasive masonry, and wet drilling suits reinforced concrete, natural stone, and asphalt. A quick adapter change swaps the motor between wet and dry setups, and its 3-speed oil-bath transmission keeps lubrication consistent in every working position through a purpose-built oil pump. The combination spindle holds an integrated centering rod, and electronic controls add a soft start, temperature and overload cut-off, an overload display, constant speed control, and a service display that flags when the carbon brushes need replacing. A mechanical safety clutch protects the operator if the bit binds, and the resistant PUR cable holds up to construction site conditions. Supplied in a case with connections for dust extraction and water supply and a jaw wrench, it suits drilling operators, civil engineers, and plumbing, heating, and ventilation contractors coring holes through concrete, masonry, and stone.
| Specification | Details |
|---|---|
| Max Diameter (Standard) | 182 mm |
| Max Diameter (With Adapter) | 202 mm |
| Transmission | 3-speed oil-bath |
| Safety Clutch | Mechanical |
Download your Eibenstock Core Drill - Wet & Dry Core Drill Motor resources:
Eibenstock Core Drill - Wet & Dry Core Drill Motor does not have any Safety Data Sheets. Request here
About Eibenstock Core Drill - Wet & Dry Core Drill Motor
It drills holes up to Ø182mm, extending to Ø202mm with the right adapter fitted.
Yes. A quick adapter change switches the motor between wet and dry drilling setups.
Dry drilling suits sand-lime brick, brickwork, clinker, and other abrasive materials, and wet drilling suits reinforced concrete, natural stone, and asphalt.
It has a mechanical safety clutch to protect the operator if the bit binds, plus electronic overload and temperature cut-offs.
A service display on the motor flags when the carbon brushes are due for replacement.
It's supplied in a case with connections for dust extraction and water supply, plus a jaw wrench.
Drilling operators, civil engineers, and plumbing, heating, and ventilation contractors use it for coring concrete, masonry, and stone.
