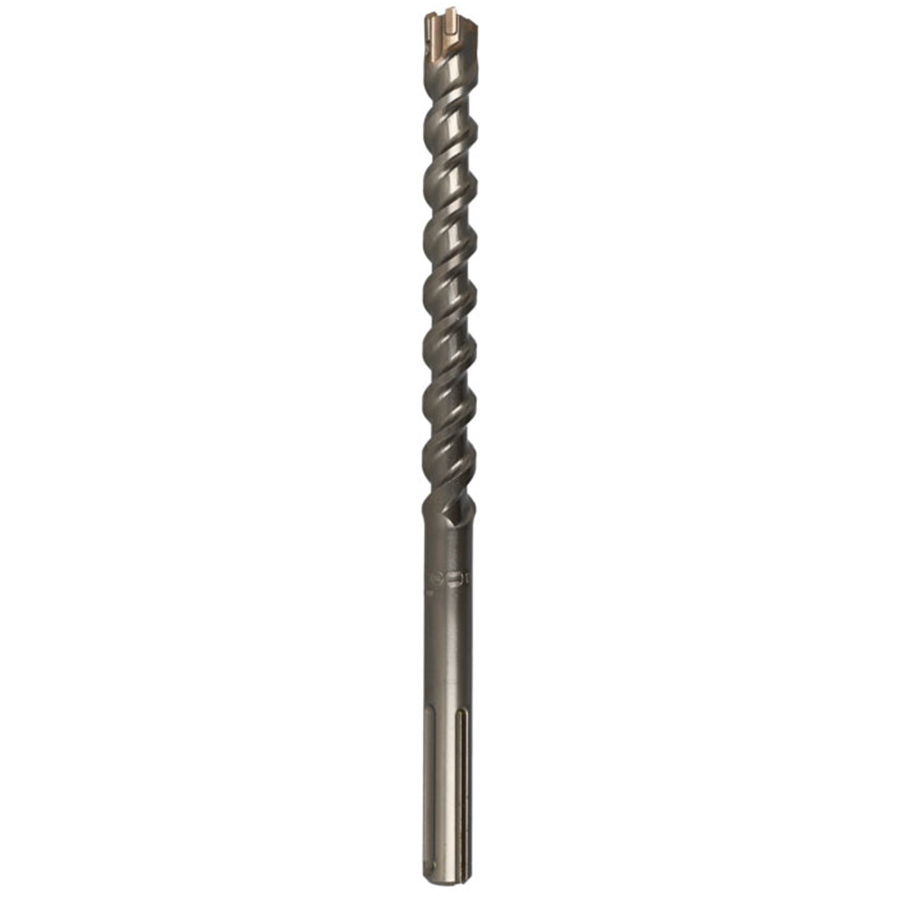

SDS Max Masonry Drill Bit 24mm x 520mm 24mm

SKU: KXZ240520

$130.14 + GST

SDS Max Masonry Drill Bit 24mm x 520mm is a heavy-duty hammer-drill bit for drilling deep plug and fixing holes in concrete, masonry and stone. Reinforced concrete, natural stone and dense masonry blunt an ordinary bit fast, and forward motion that drifts off-centre in armed concrete risks a hole that isn't cylindrical or a bit that locks in the reinforcement steel. This bit uses the SDS-max W2 TURBOHEAD Xpro design: a W2 helix with asymmetrical shovel-shaped entry grooves and large-volume double hauling flutes clears drilling dust fast, while the depth-offset full carbide head and X-cutting, 2x2 cutting concept stop the bit locking in reinforcement and keep the hole exactly cylindrical even in armed concrete, even over its longer 520mm reach. Chrome-nickel-molybdenum steel construction is shot-peened and hardened to an intermediate level, with the carbide head high-temperature brazed at about 1,120°C for a bond that holds under heavy impact. It fits directly into SDS-max and HILTI TE-Y drive hammer drills and is made in Germany. At 24mm diameter and 520mm long, contractors and tradies handling heavy fixing and anchor work reach for this longer size wherever a deeper large-diameter hole is needed in artificial stone, masonry, natural stone or reinforced concrete.

Read more

Key Specs

  • Diameter: 24mm
  • Length: 520mm
  • Weight: 0.95kg
  • Material: Chrome-Nickel-Molybdenum Steel, TURBOHEAD Xpro Full Carbide Head
See All Specifications
In Stock

Need a quote? Simply add to cart and you have the option to request a quote before checkout

What is SDS Max Masonry Drill Bit 24mm x 520mm?

SDS Max Masonry Drill Bit 24mm x 520mm is a heavy-duty hammer-drill bit for drilling deep plug and fixing holes in concrete, masonry and stone. Reinforced concrete, natural stone and dense masonry blunt an ordinary bit fast, and forward motion that drifts off-centre in armed concrete risks a hole that isn’t cylindrical or a bit that locks in the reinforcement steel. This bit uses the SDS-max W2 TURBOHEAD Xpro design: a W2 helix with asymmetrical shovel-shaped entry grooves and large-volume double hauling flutes clears drilling dust fast, while the depth-offset full carbide head and X-cutting, 2×2 cutting concept stop the bit locking in reinforcement and keep the hole exactly cylindrical even in armed concrete, even over its longer 520mm reach. Chrome-nickel-molybdenum steel construction is shot-peened and hardened to an intermediate level, with the carbide head high-temperature brazed at about 1,120°C for a bond that holds under heavy impact. It fits directly into SDS-max and HILTI TE-Y drive hammer drills and is made in Germany. At 24mm diameter and 520mm long, contractors and tradies handling heavy fixing and anchor work reach for this longer size wherever a deeper large-diameter hole is needed in artificial stone, masonry, natural stone or reinforced concrete.

Benefits

  • SDS-max W2 TURBOHEAD Xpro design keeps the hole exactly cylindrical even in armed concrete
  • 2x2 cutting concept stops the bit locking in reinforcement steel
  • 520mm length reaches deeper than the standard 320mm bit
  • Chrome-nickel-molybdenum steel shot-peened and hardened for heavy-duty use
  • Carbide head brazed at about 1,120°C for a bond that holds under repeated impact

Main Applications

  • Drilling deep, large-diameter plug and fixing holes in reinforced concrete
  • Masonry and natural stone drilling
  • Artificial stone drilling
  • Heavy fixing and anchor installation with SDS-max hammer drills

Technical Specifications

Specification Details
Diameter 24 mm
Length 520 mm
Weight 0.95 kg
Material Chrome-Nickel-Molybdenum Steel, TURBOHEAD Xpro Full Carbide Head
Country of Origin Germany

Resources

Download your SDS Max Masonry Drill Bit 24mm x 520mm resources:

  • Safety Data Sheet

    SDS Max Masonry Drill Bit 24mm x 520mm does not have any Safety Data Sheets. Request here
