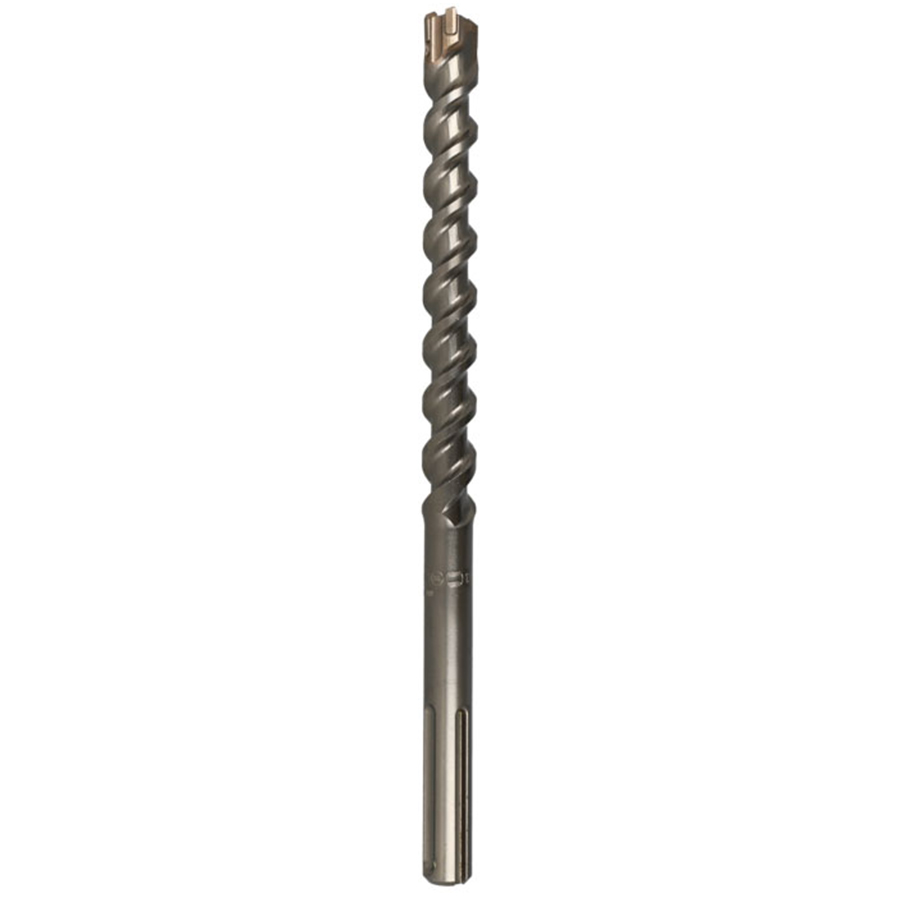

SDS Max Masonry Drill Bit 16mm x 340mm 16mm

SKU: KXZ160340

$116.98 + GST

SDS Max Masonry Drill Bit 16mm x 340mm is a heavy-duty hammer-drill bit for drilling plug and fixing holes in concrete, masonry and stone. Reinforced concrete, natural stone and dense masonry blunt an ordinary bit fast, and forward motion that drifts off-centre in armed concrete risks a hole that isn't cylindrical or a bit that locks in the reinforcement steel. This bit uses the SDS-max W2 TURBOHEAD Xpro design: a W2 helix with asymmetrical shovel-shaped entry grooves and large-volume double hauling flutes clears drilling dust fast, while the depth-offset full carbide head and X-cutting, 2x2 cutting concept stop the bit locking in reinforcement and keep the hole exactly cylindrical even in armed concrete. Chrome-nickel-molybdenum steel construction is shot-peened and hardened to an intermediate level, with the carbide head high-temperature brazed at about 1,120°C for a bond that holds under heavy impact. It fits directly into SDS-max and HILTI TE-Y drive hammer drills and is made in Germany. At 16mm diameter and 340mm long, contractors and tradies handling heavy fixing and anchor work reach for this size wherever larger-diameter plugs, anchors or fixings need to go into artificial stone, masonry, natural stone or reinforced concrete.

Read more

Key Specs

  • Diameter: 16mm
  • Length: 340mm
  • Weight: 0.25kg
  • Material: Chrome-Nickel-Molybdenum Steel, TURBOHEAD Xpro Full Carbide Head
See All Specifications
In Stock

Need a quote? Simply add to cart and you have the option to request a quote before checkout

What is SDS Max Masonry Drill Bit 16mm x 340mm?

SDS Max Masonry Drill Bit 16mm x 340mm is a heavy-duty hammer-drill bit for drilling plug and fixing holes in concrete, masonry and stone. Reinforced concrete, natural stone and dense masonry blunt an ordinary bit fast, and forward motion that drifts off-centre in armed concrete risks a hole that isn’t cylindrical or a bit that locks in the reinforcement steel. This bit uses the SDS-max W2 TURBOHEAD Xpro design: a W2 helix with asymmetrical shovel-shaped entry grooves and large-volume double hauling flutes clears drilling dust fast, while the depth-offset full carbide head and X-cutting, 2×2 cutting concept stop the bit locking in reinforcement and keep the hole exactly cylindrical even in armed concrete. Chrome-nickel-molybdenum steel construction is shot-peened and hardened to an intermediate level, with the carbide head high-temperature brazed at about 1,120°C for a bond that holds under heavy impact. It fits directly into SDS-max and HILTI TE-Y drive hammer drills and is made in Germany. At 16mm diameter and 340mm long, contractors and tradies handling heavy fixing and anchor work reach for this size wherever larger-diameter plugs, anchors or fixings need to go into artificial stone, masonry, natural stone or reinforced concrete.

Benefits

  • SDS-max W2 TURBOHEAD Xpro design keeps the hole exactly cylindrical even in armed concrete
  • 2x2 cutting concept stops the bit locking in reinforcement steel
  • W2 helix with double hauling flutes clears drilling dust fast
  • Chrome-nickel-molybdenum steel shot-peened and hardened for heavy-duty use
  • Carbide head brazed at about 1,120°C for a bond that holds under repeated impact

Main Applications

  • Drilling larger-diameter plug and fixing holes in reinforced concrete
  • Masonry and natural stone drilling
  • Artificial stone drilling
  • Heavy fixing and anchor installation with SDS-max hammer drills

Technical Specifications

Specification Details
Diameter 16 mm
Length 340 mm
Weight 0.25 kg
Material Chrome-Nickel-Molybdenum Steel, TURBOHEAD Xpro Full Carbide Head
Country of Origin Germany
